TagPlus-TH  Temperature Humidity Data loggers

TagPlus-TH Temperature Humidity Data loggers

Multi-use, configurable parameters

Temporary reports available

Up to 9 event Marks

Up to 6 alarm points

±0.5℃ at full range (-30℃ to +70℃)

Compatible with Windows and Mac OS alike

35,000 readings maximum memory capacity

FDA CFR21 certified

tagplus-th-lcd-display-temperature-and-humidity-data-loggers-usb-pdf-for-shipping-reefers3.jpgIntroduction

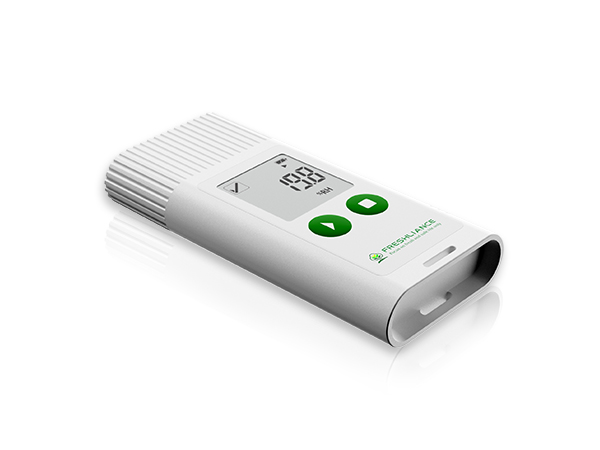

TagPlus-TH is a multi-use temperature and humidity data logger with an LCD screen for easy viewing of temperature and humidity data. Parameters can be configured before use. Complete trip history will be recorded and downloaded as encrypted reports with summary data, graphs, and tables. The report can be directly read by PC at the destination. And the temporary mode allows this thermometer to continue working after users have gotten and read the temporary report. It is an ideal choice for monitoring and recording the temperature and humidity changes of sensitive goods during transportation.



Specifications


ModelTagPlus-THType of UseMulti use
Temperature Range

-30℃~+70

-40℃~+60℃ (optional)

Temperature Accuracy±0.5 F.S.
Humidity Range0~100%RHHumidity Accuracy±3%RH(25℃, 20%~80%RH); ±5%RH(Others)
Resolution0.1℃, 0.1%RHMemory Capacity35,000 readings; PDF & CSV: Max. 20,000 readings each
Report FormatPDF/CSV/PDF&CSVReport OutputAutomatic, no software needed
Battery

3.0V CR2032 button cell

(Shelf life: 3 years / Battery Life: Max. 180 days)

ConnectionUSB, NFC (optional)
Compatible OSWindows, MacLogging Interval

1 minute-24 hours

Start Delay0 minute-24 hoursProtection GradeIP65
Dimensions82mm*39mm*13.5mmWeight29.5g



Features


Battery replaceable

The battery can work for up to 180 days, and can be replaced if it runs out.

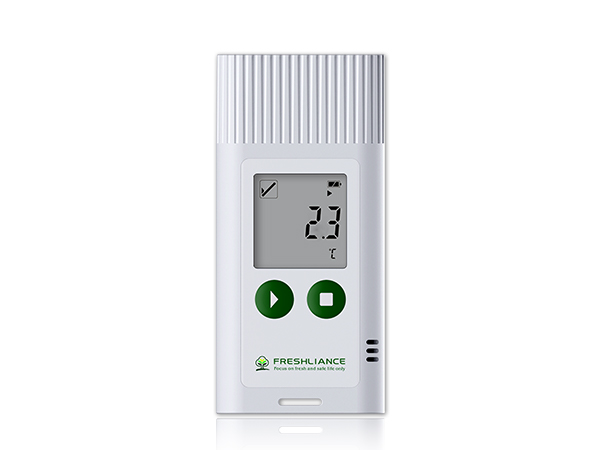

Intuitive LCD screen

LCD screen displays real-time temperature and humidity readings and other trip statistics, such as Max., Min., Average temperature and humidity value, and high/low alarm.


Temporary report available

The temporary mode allows the USB Thermograph to continue working after users have gotten and read the temporary report.

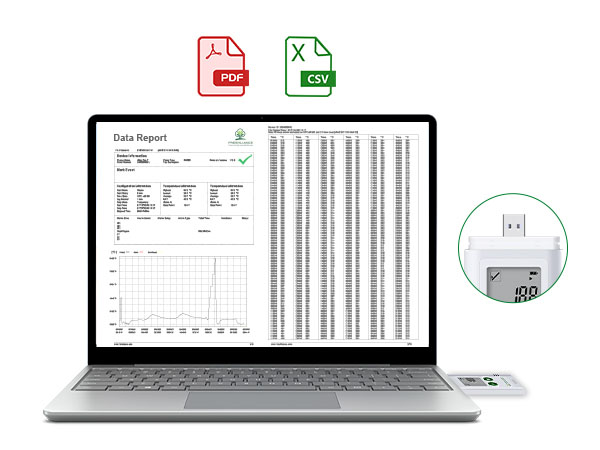

Automatic PDF/CSV data report

PDF/CSV/PDF&CSV reports with graphs and tables are automatically generated on a computer, with no cable or reader required.


CE, RoHS, EN12830, FDA

This  temeprarture and humidity data logger complies with the relevant international standards, such as CE, RoHS, FDA and EN12830. It can be used for temperature and humidity monitoring and logging during transportation, storage and distribution of food, etc.


Smart application and reminder

To avoid reports missing, the report should be first downloaded before reuse of the device. When the memory is full, it will automatically stop recording. The Thermometer has a battery exhaustion reminder and reconfiguration reminder.


Temperature units switchable

Celsius (℃) and Fahrenheit (℉) can be freely switched.



Large memory capacity

Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.



Applications


TagPlus-TH Multi-use Temperature and Humidity Data Logger is important to cold chain transportation for perishable products, especially food products. A non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.


For meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.


For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.


The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.


TagPlus-TH USB Sensor Temperature Data Logger with a large temperature and humidity display is a necessary evidence for the product owner and the cold chain carrier if to accept or reject the products.


Freshliance provides professional temperature/humidity monitoring and recording solutions to make sure every change in the whole cold chain solution will be traced and recorded irreversibly. In addition to the advanced USB type data loggers, Freshliance also provides IOT-based wireless monitoring solutions, including Bluetooth, NFC, LTE/NB, WiFi etc.

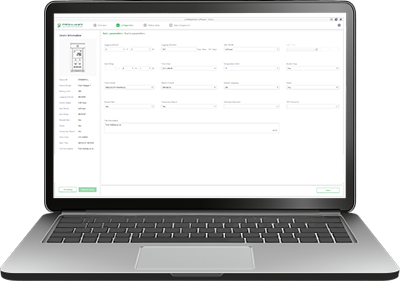

Freshliance Tools is a PC software designed for easy configuration, data retrieval, and analysis of Freshliance USB data loggers. Once a logger is connected via USB, the software automatically detects the device and displays key information such as device ID, battery level, logging interval, device status and start mode. Users can view temperature and humidity trends in interactive graphs, access detailed data logs, and get statistics including max/min/average values and MKT.


The software supports flexible report export in PDF, CSV, TXT  or PNG format across multiple languages, and allows full configuration of logging parameters, alarm thresholds, time zones, and report settings. The software also supports data comparison of multiple devices on a same chart, allowing users to easily identify discrepancies and analyze performance across different loggers.


Freshliance Tools-FDA is a desktop software specially designed for TagPlus series with U.S. FDA 21 CFR Part 11 compliance. In addition to Freshliance Tools function, this software provides an audit-proof central data management platform. It is designed with security measures such as data encryption and access control to ensure data confidentiality and integrity. It also records all key operations and supports electronic signature to ensure data authenticity and traceability. It helps users avoid common FDA compliance missteps help users easily maintain FDA compliance.
