Thermis Log 10T Single Use USB Temperature Data Loggers

Thermis Log 10T Single Use USB Temperature Data Loggers

±0.3℃ at full range (-30℃ to +70℃) for pharmaceuticals

Parameters configurable

Temporary temperature, Mark available

Built-in certificate verification

IP65 Professional protection grade

Compatible with Windows and Mac OS alike



Introduction

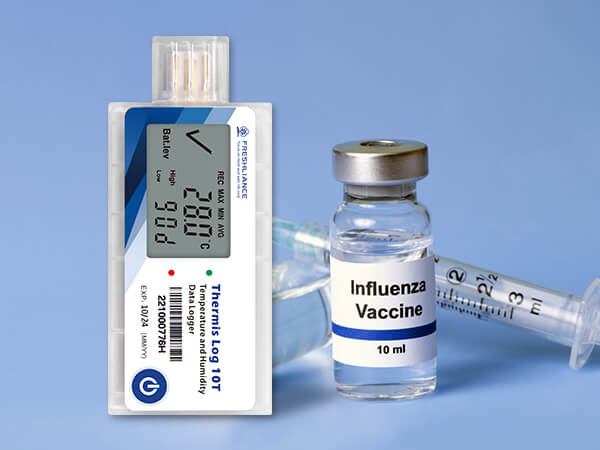

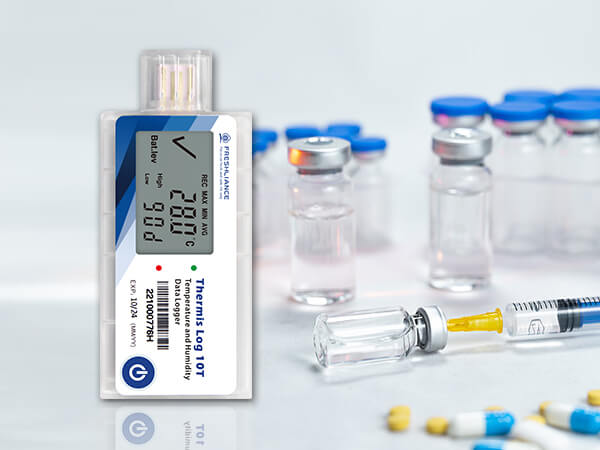

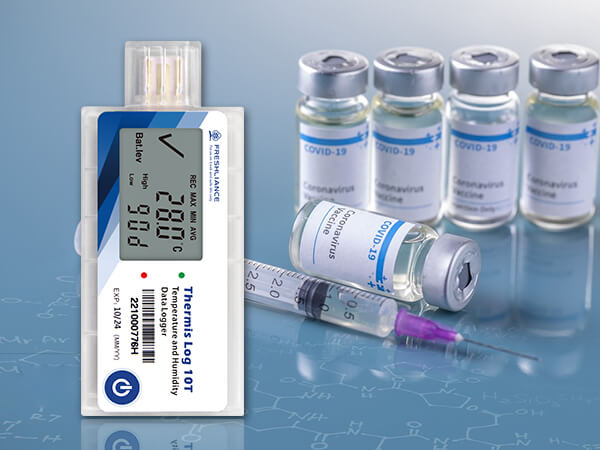

Thermis Log 10T Single-use Temperature Data Logger with an LCD screen and a measurement accuracy of ±0.3℃. It is ideal for sensitive products transport and storage, especially pharmaceuticals. The logger is using food-grade and waterproof packaging material, compact, thin.


Thermis Log 10T Single-use Temperature Data Logger, has built-in calibration verification. PDF and CSV report are available to get after the logger connect with the PC directly without any additional software.


Feature


Low power consumption, high precision

Max. 120 days with accuracy of ±0.3℃, suitable for the pharmaceutical industry


Large capacity

Max. 65,000 readings memory capacity


Large LCD Screen

The intuitive large screen display of real-time temperature data


Automatic report generation

Automatically generates irreversible PDF reports without software


Parameters programmable

Parameters are configurable before start


Specifications


Model

Thermis Log 10T

Type

Disposable

Display

LCD, LED

Run Days

Max. 120 days

Sensor

Internal NTC

Memory Capacity

Max. 65000 readings

Temperature Range

-30℃~+70℃

Temperature Accuracy

±0.3℃ at full range (-30℃ to +70℃)

Resolution

0.1℃

Battery

3.0V CR2032

Logging Interval

1 minute to 2 hours

Start Delay

0 second-2 hours

Button

Start/Stop

Start Mode

Manual

Connection

USB, NFC (optional)

Compatible OS

Windows, Mac

Weight

11g

Dimension

67mm *27mm *5mm

Protection Grade

IP65

Certification

CE, RoHS, EN12830


Applications


Vaccines are always transported as refrigerated cargo directly by air from the manufacturer to the country where they will be used when delivered. Once they land, they are stored in cold rooms before being distributed to regional and sub-regional cold storage facilities by refrigerated vehicle. Health workers carry vaccines in refrigerators and vaccine carriers by car, motorcycle, donkey, camel, or on foot from storage facilities to villages, to vaccinate every child, even in the most remote villages. Our temperature logger for the refrigerator can help to monitor the temperature in every step.


Storage and transport equipment such as cold rooms, refrigerators, freezers, cold boxes, and vaccine carriers must comply with performance standards. Any improper temperature environment, either above or below the safe limit, can result in compromised efficiency or even total loss of products.


Freshliance Thermis Log 10T Single Use sensor temperature USB data logger adopts the sensor made in Japan, with truly ±0.3℃ accuracy. And the USB temperature sensor is suitable for pharmaceuticals, food, life science, cooler boxes, medical cabinets, fresh food cabinets, freezers, or laboratories that request high accuracy. Freshliance provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded irreversible, PDF Logging, CSV temperature history, and online IOT logging in any format are available.




Freshliance Tools

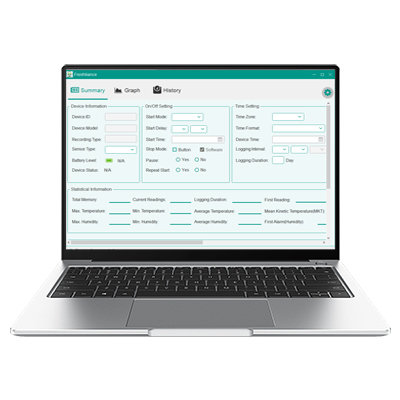

Freshliance Tools is a desktop software for users to use Freshliance USB data loggers. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.


The software is designed for Fresh Tag 10T/TH, Thermis Log 10T/TH, Tagplus-T/TH, Atlas Log-30/60/90/200/IUT, Rugged data logger, Keeper 1/IUT, COEUS-UEX.
