AlertTag T20 Disposable Temperature Monitor/Indicator

Large LCD screen for easy viewing

Up to 4 alarm points

±0.5℃ high accuracy

180 days maximum run days

IP68 professional protection grade

Compact design and easy to place

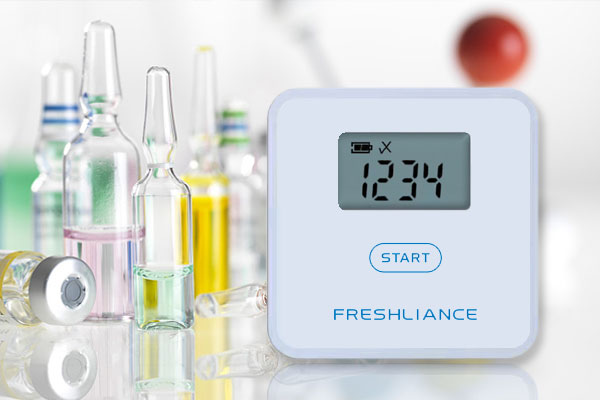

1-211216141001I9.jpgIntroduction



Alert Tag T20 Single-use Temperature Indicator with LCD Display is highly accurate. With the compact and highly reliable design, the electronics temperature indicators can measure the transportation environment of temperature-sensitive products. The user-friendly and intuitive display can show the alarm state clearly. Up to 4 different alarm points can be programmed to customer requirements. This indicator applies to the pharmaceutical industry, including vaccines, protein, or any temperature-sensitive product shipment monitoring.

Features



Easy-to-read screen display

The user-friendly LCD screen can view the Max. and Min. temperature, current temperature value, and alarm status enabling immediate and easy decision-making.


Four alarm points are available

Up to 4 alarm settings - two groups of high and low alarms. When the temperature exceeds the preset value, the corresponding alarm point 1, 2, 3, or 4 will be displayed.


Reliable electronic design with high accuracy

Built-in Japan-made smart thermometer sensor, with a measuring accuracy of ±0.5°C. Up to 180 working days, with a shelf life of 2 years.


Compact design and easy to place

The compact design with the plastic shell is more suitable for medical transportation. The Electronics Indicators can be directly stuck on the product package to monitor the temperature.


Pass multiple certifications

The electronics indicator has passed CE certification and EN12830 compliant, and the protection grade is IP68.


Specifications


Model

AlertTag T20

Type

Disposable

Display

LCD screen

Run Days

180 days

Logging Interval

≥10 seconds

Start Delay

10 minutes (Customizable)

Protection Grade

IP68

Certification

CE, EN12830

Weight

13.2g

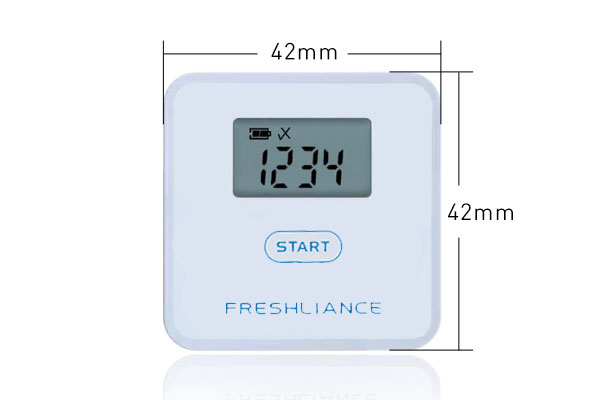

Dimension

42mm* 42mm* 11mm

Temperature Accuracy

±0.5℃/0.9℉(full range)

Temperature Range

-30℃~+70℃ (-22℉~158℉)

Alarm Range (Customizable)

1-L1:<0℃

2-L2:<2(Accumulated 12h)

3-H1:>8(Accumulated 12h)

4-H2:>25℃

Battery

3.0V CR2032 lithium battery




Applications


Alert Tag T20 LCD Sing-use Temperature Indicator is a temperature indicator for blood, bio-pharmaceuticals, life sciences, biological samples, blood cold chain transportation, diagnostic reagents, including biological reagents, molecular reagents, COVID-19 reagents, and cell biology agents.


While common drugs are inorganic molecules, biologics are all active molecules. The organic components in biologics are temperature-sensitive because of biological activity. So there is a need for our time-temperature indicator to monitor the temperature changes during the transportation of biologics.


Products such as biologics and vaccines have a short shelf life, so the temperature changes during transportation should be controlled in time. Our cost-effective, easy-to-operate temperature indicator for a vaccine with a real-time temperature display is ideal for the pharmaceutical industry and biologics.
