Introduction

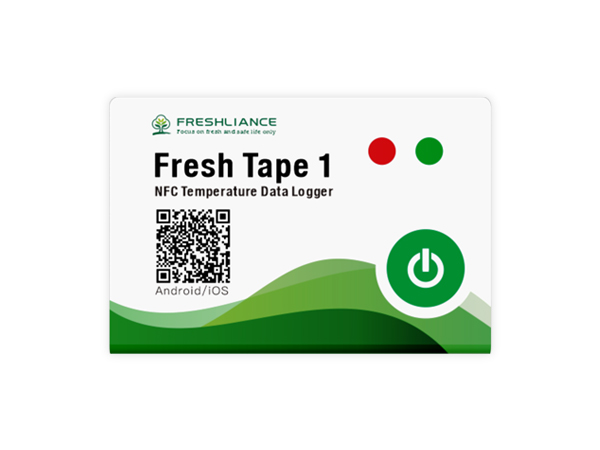

Fresh Tape 1 Single-use NFC Temperature Data Logger is a portable device for temperature monitoring of perishable items during distribution and storage. It uses a mobile APP for configuration and data reading via the simple NFC interface. Data is stored in the internal memory and accessible via the APP by placing the NFC-enabled phone above the logger.
Features
Wireless configuration and data acquisition via NFC interface (Near Field Communication)
Fresh Tape 1 is a temperature data logger with NFC function. Users can easily configure it and view monitoring data via our free APP Ttape by placing it above a NFC-enabled smart phone.
Comprehensive data graphing, analysis and filtration via APP
This APP can automatically collect monitoring data from the logger via NFC communications, and then deal with such data with versatile ways, such as summarizing all data in graph or detailed list, calculating min., max., and average values, and sorting normal or alarm data, etc.
Data alarm via APP and LED indicators of the device
Two alarm points can be set. When any data is out of the preset limit thresholds, the red indicator light on the logger will flash, and the alarm data will be displayed in red in the APP for alarm reminding.
Free APP for Android/iOS smart phones
The APP is provided for both Android and iOS smartphones, convenient and user friendly.
Verified quality, IATA requirements complied
To ensure its high quality and performance, this data logger will be subject to strict factory tests and verification. And it complies with IATA requirements for air transportation and other international standards.
Specifications
Model | Fresh Tape 1 | Type of Use | Single use |

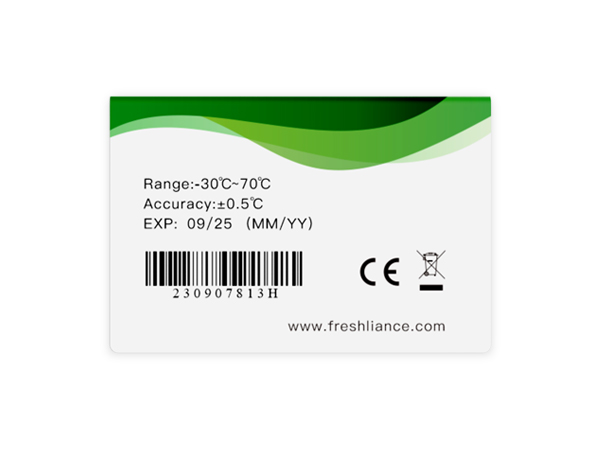

Temperature Range | -30℃~70℃ | Temperature Accuracy | ±0.5℃ F.S. |
Start Delay | 0min~2h | Logging Interval | 1min~2h |
Report Format | PDF, CSV | O/S | Android, iOS |
Display | LED | Communication | NFC |
Memory Capacity | 3000 | Alarm Points | 2 |
Protection Class | IP67 | Battery | CR2032 |
Dimensions | 43mm*27mm *2mm | Weight | 4.2g |
Applications
Fresh Tape 1 is mainly used in cold chain transportation of fruits, food, medicine, vaccines, blood, electronics, chemicals and other temperature-sensitive products, to realize one-to-one information registration and temperature recording.
