Wide Temperature Range: -200°C to +1360°C (±0.2%FS)
Flexible Probe Options for Various Applications
USB Plug-and-Play with Fast Data Access
Real-Time Monitoring via Mobile Connection
Free Software for Configuration and Monitoring
Flexible Data Export and Reporting
Magnetic Mount for Easy Installation
Introduction

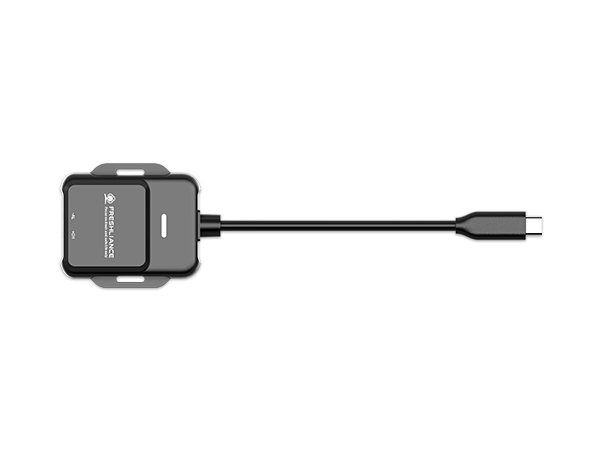

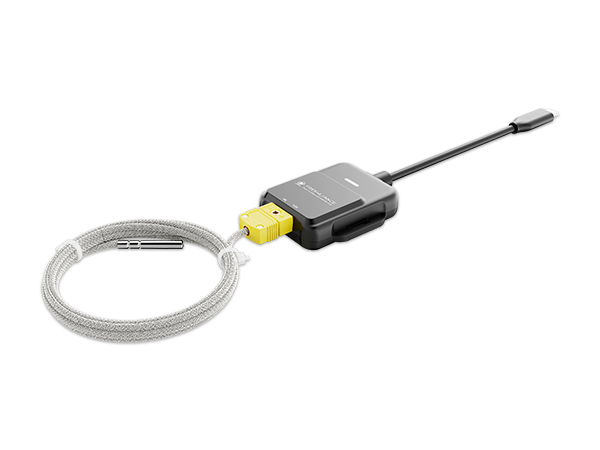

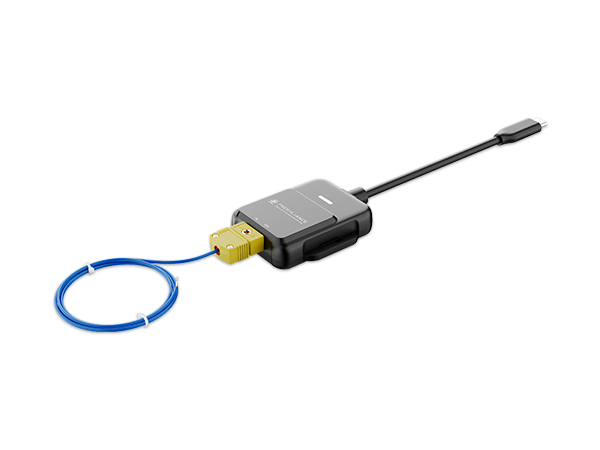

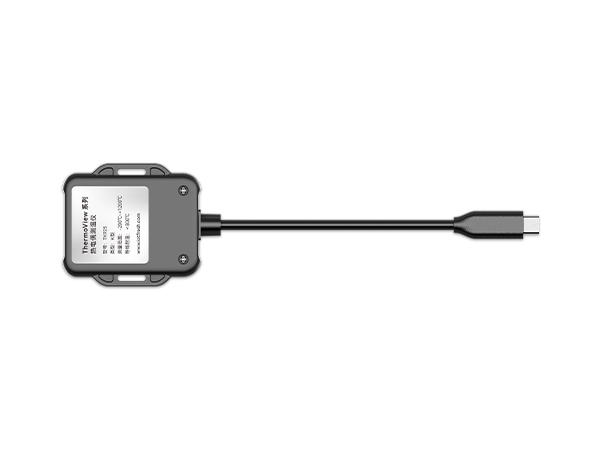

Designed as a single-channel thermocouple thermometer, TK925 is a high-precision and easy-to-use instrument that delivers fast and reliable temperature measurement. Equipped with a Type-C interface, the USB thermocouple thermometer can be directly connected to a smartphone without an external power supply, enabling true plug-and-play operation for real-time temperature monitoring and recording.
With a wide temperature measurement range, TK925 ultra-high temperature thermometer is well-suited for laboratories, industrial environments, and research applications, providing a simple and efficient solution for accurate temperature testing.
Features

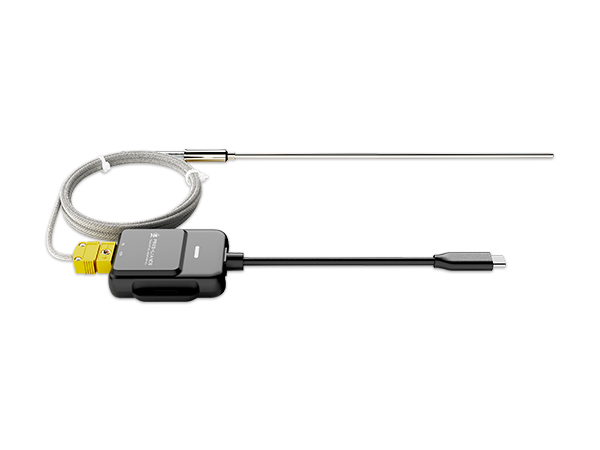

Flexible Probe Options for Various Applications
Optional thermocouple probes support a wide measurement range and adapt to different testing scenarios.
USB Plug-and-Play with Fast Data Access
Plug-and-play USB connection ensures quick response and seamless data transfer.
Real-Time Monitoring via Mobile Connection
Displays live temperature curves with stable and continuous data recording.
Free Software for Configuration and Monitoring
Dedicated software enables real-time monitoring, device setup, and data management.
Flexible Data Export and Reporting
Easily export and share recorded data for further analysis and documentation.
Magnetic Mount for Easy Installation
Built-in magnetic design enables quick and secure attachment to metal surfaces.
Specifications
Model | TK925 |
Measuring range | -200℃~+1360℃ |
Temperature accuracy | ±0.2% |
Resolution | 0.01℃ |
Repeatability | ±0.25℃ |
Sample frequency | Max. 15Hz, min 0.2Hz |
Power Supply | USB 5V |
Power Current | 10mA |
Thermocouple Type | Single channel, Type K |
Thermocouple Probes (Optional) | Surface (SS2520) / Needle (SS2520) |
Thermocouple Connector | Thermocouple plug/ socket |
Thermocouple Cable | Armored, 2m, Ø4 mm (customizable lengths:1m / 5m / 10m) |
Communication Output | USB Type-C |
Software Kit | ThermoView |
Weight | ～43g (device only) |
Dimensions | 60*53*16mm |
Ambient Temperature | -20℃～+80℃ |
Ambient humidity | 0%RH~95%RH(non-condensing) |
Applications
TK925 single-channel thermocouple thermometer is designed for a wide range of applications, including laboratory testing, industrial processes, and research. It is ideal for heat treatment, food sterilization, and engine testing, chemical reactors, pharmaceutical ovens, HVAC ducts, welding/incinerators, and lab calibration.
ThermoView
(Android Supported)
ThermoView is a dedicated application developed by Freshliance for the TK925 thermocouple temperature data logger, designed to simplify on-site temperature monitoring and data management in industrial and professional environments. Unlike typical wireless solutions, ThermoView connects directly to Android devices via USB Type-C, enabling stable, real-time data transmission without signal interference or connectivity issues. This makes it especially suitable for environments where wireless communication may be unreliable or restricted.
With ThermoView, users can perform on-site operations easily without carrying a laptop. The app supports quick configuration of key parameters such as sampling interval, device settings, and data export. During measurement, users can view real-time temperature curves directly on their smartphone, making it ideal for calibration, testing, and process monitoring. All recorded data can be instantly accessed, exported, and shared after measurement is completed, helping users respond quickly to temperature changes and maintain accurate control over critical processes.
With its clear, user-friendly interface, ThermoView improves operational efficiency and offers a practical solution for professionals who need reliable, fast, and mobile temperature monitoring in the field.
Not sure which model is suitable for your application? Send us your requirements—we will recommend the best solution.
