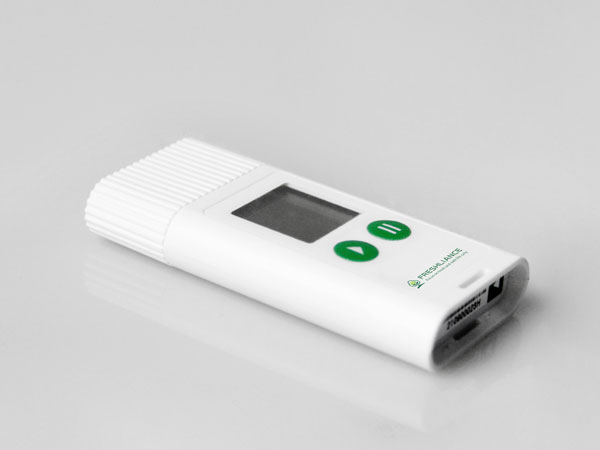

Tagplus-T Multi-use Temperature Data Loggers USB PDF Multipurpose

Multi-use, configurable parameters

Temporary reports available

Up to 9 event markers

Up to 6 alarm points

Battery life up to 180 days, replaceable batteries

±0.5°C high accuracy

Compatible with Windows and Mac OS alike

35,000 readings maximum memory capacity


usb temperature data logger lcd temperature data logger



202111080944306173.jpgIntroduction

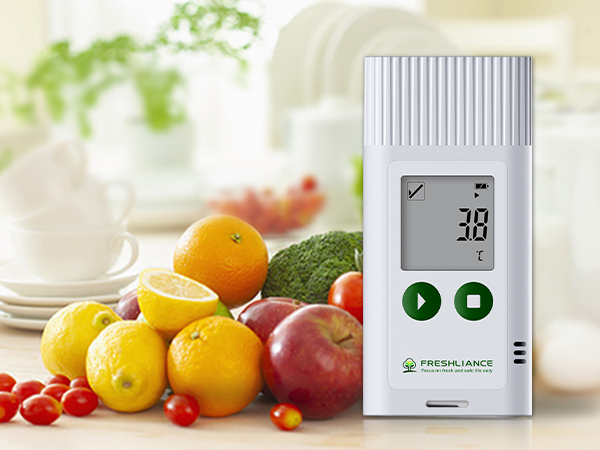

TagPlus-T is a multi-use temperature data logger with an LCD screen for easy viewing of temperature data. In this device, parameters can be configured by a professional user before use. Complete trip history is recorded and downloaded as encrypted reports with summary data, graphs, and tables, the report can be directly read by PC at the destination. And the temporary mode allows the device to continue working after users have generated and read the temporary report. This USB Temperature Sensor is an ideal choice for in-transit records of the temperature changes of sensitive goods.

Features



Smart application

To avoid reports missing, reuse is available only after the report is downloaded. When the memory is full, the Thermometer will automatically stop recording.


Timely reminder

The Data Logger Temperature Sensor has battery exhaustion reminder and reconfiguration reminder for time accuracy.


Temporary report available

The temporary mode allows the device to continue working after users have generated and read the temporary report.

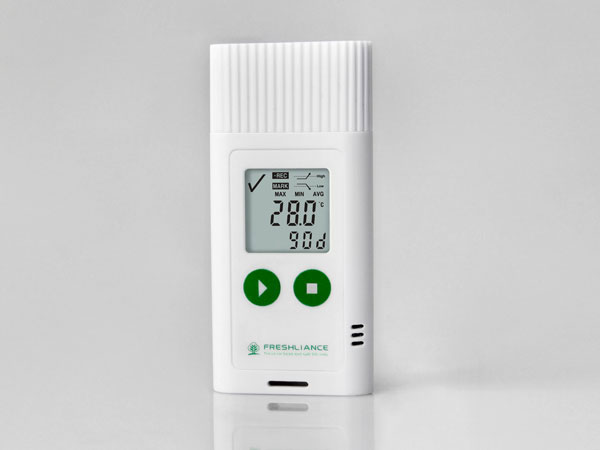

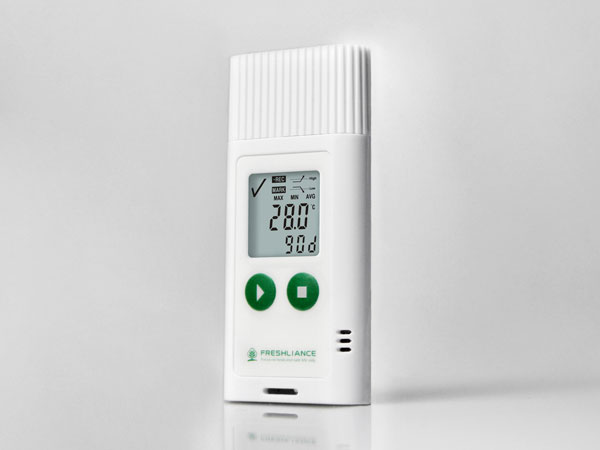

Intuitive LCD screen

LCD screen display all parameters, Max, Min, Average temperature value, and high/low alarming curve.


CE, RoHS, EN12830

Complies to EN12830, it can be used for transportation, storage, and distribution of food.

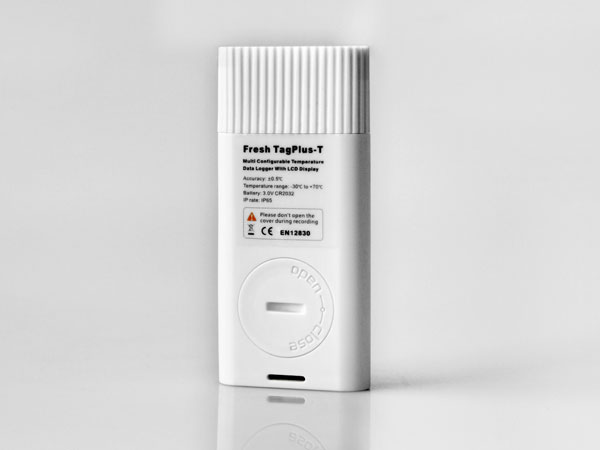

Battery replaceable

Up to 180 days battery life, and then you can change the battery.


Specifications


Model

 Tagplus-T

Type

Reusable

Temperature Range

-30℃~+70℃

Temperature Accuracy

±0.5℃

Resolution

0.1℃

Memory Capacity

35000 readings PDF only, 20000 readings PDF & CSV

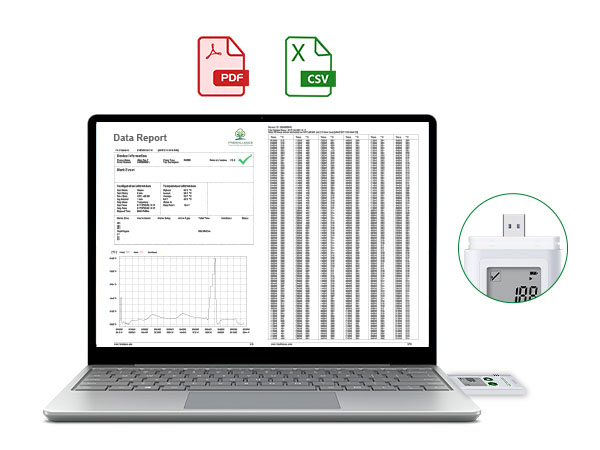

Report Format

PDF/CSV/PDF&CSV

Run Days

Max.180 days

Report Output

Automatic, no software needed

Connection

USB2.0 connector

Compatible OS

Windows, Mac

Logging Interval

1 minute-24 hours

Start Delay

0 minute-24 hours

Protection Grade

IP65

Battery

3.0V CR2032 lithium battery

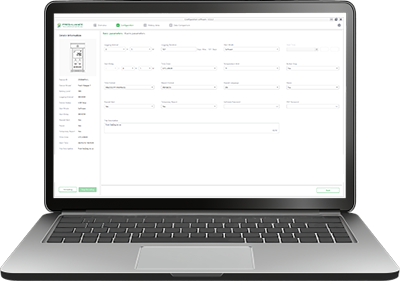

Parameters Configurable

Yes

Dimension

82mm*39mm*13.5mm

Weight

29.3g

LCD Screen Display

Temperature value, Max/Min/Average value, Out of alarm range symbol, High/Low alarm curve, Battery level



Applications


Tagplus-T Multi-use Temperature Data Loggers USB PDF Multipurpose(图1)


Tagplus-T Multi-use Temperature Data Loggers USB PDF Multipurpose is important in cold chain transportation for perishable product, especially for food. Non breaking cold chain could guarantee food products retaining their high quality and optimum shelf life.


For the meat and fish products, also called frozen food, The Data Logger Temperature Sensor is especially important that the growth of microbes is kept as low as possible by maintaining temperature threshold values.


For the fruit and vegetables, the most important thing is to prevent the produce ripening too early. Fruits, vegetables and flowers are highly perishable commodities that require proper environmental monitoring in post harvest handling to maximize freshness, quality and shelf life from the field to the table.


The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage to ensure food safety, quality and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat and poultry and floral product.


Tagplus-T Multi-use USB Sensor Temperature Data Logger PDF Multipurpose is a necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.


Freshliance provide all kinds temperature logging or temperature data logging solutions to make sure every change in whole cold chain solution will be traced and recorded irreversible, PDF Logging,CSV temperature history, on line IoT logging in any format are available.
