Atlas Log-30 Temperature Data Logger

Introduction

Atlas Log is a Single use/Multi-use temperature data logger with an LCD screen. The USB thermograph features a high-resolution temperature range of -30 to 70°C. It comes with up to 35,000 readings with a real-time temperature display. Parameters can be freely configured on configuration software provided by our company. The built-in PDF / CSV file generation function enables this temperature data logger with an external probe to directly generate irreversible PDF/CSV data reports on a computer, with no software required, with no software required. This temperature data logger can be used for temperature monitoring in wide applications such as sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods, shipping containers, etc.

Features

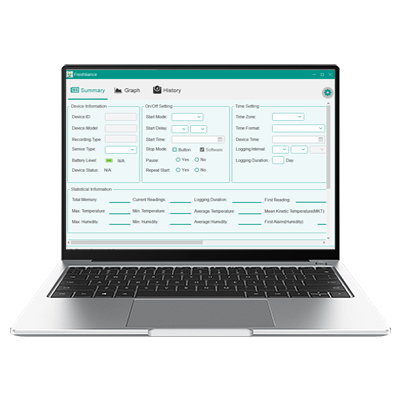

Online software configuration

Parameters can be freely configured on the configuration software.

Battery replaceable

The battery is replaceable.

Alarm points and Mark function

Up to 6 alarm points can be set. And in case of any key events, a mark can be made. Up to 9 marks can be made.

Password protection

Passwords can be set to prevent others from unauthorized operations on the device.

High accuracy

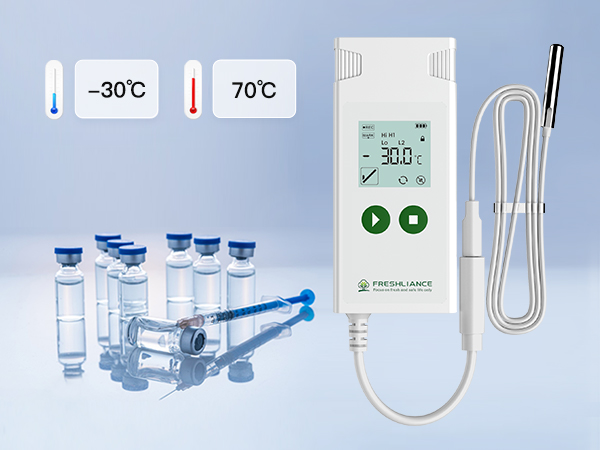

The external probe can measure temperature from -30 to 70°C with high accuracy of ±0.5℃.

Intuitive LCD display

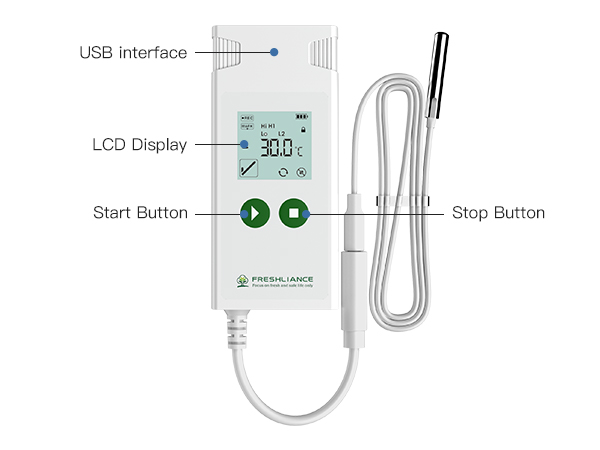

LCD screen displays, running status, current temperature, alarm status, battery level, alarm points, Max, Min, and Average temperature value, etc.

Temporary report available

The temporary mode allows this temperature data logger to continue working after users have exported and read the temporary report. Current configuration information can be viewed using the configuration software.

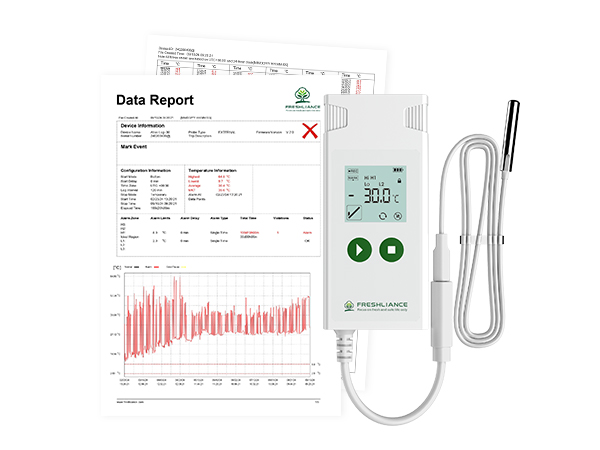

Automatic PDF/CSV data report

With the integrated USB design, the temperature data logger can be directly connected to one computer to automatically generate PDF/CSV/PDF&CSV reports with graph and table, no cable or reader required.

LCD alarm indication and optional buzzer alarm available

Once the temperature is out of the preset alarm range, the alarm symbol(x) will be displayed on the LCD screen, and the buzzer, if set, will emit an alarm sound of 60 decibels at 3m.

Temperature units switchable

Celsius (℃) and Fahrenheit (℉) can be freely switched.

Large memory capacity

Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.

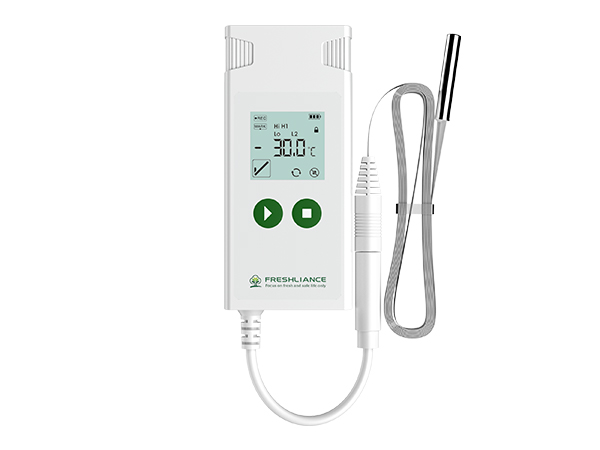

Multiple probe types optional

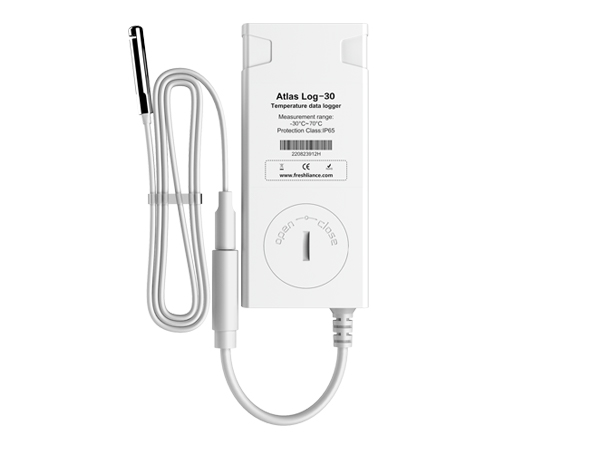

The external pluggable cable is normally 2m long and other cable lengths are customizable; and for enclosed or sealed spaces with higher sealing requirements,  we also provide flexible ultra thin cable, which is 0.3mm thick and 7.5mm wide, suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head as required.

Specifications

Applications

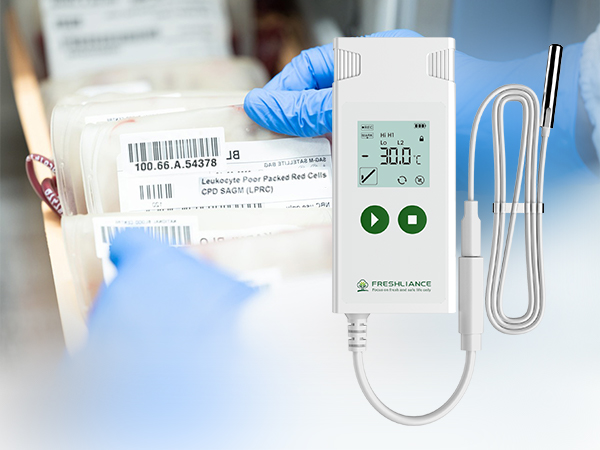

Atlas Log Single use/Multi use Temperature Data Logger with External Probe can be used for in-transit temperature records of biopharmaceuticals, life sciences, biological samples, blood cold chain, diagnostic reagents, including biological reagents, molecular reagents, COVID-19 reagents, and cell biology agents during the low-temperature environment.

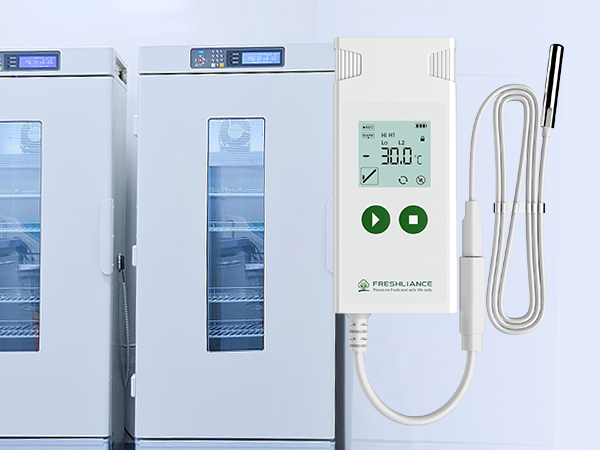

Our Atlas Log Single use/Multi use Temperature Data Logger has an external probe that can record and monitor the ultra-low temperature in cold storage, cold chain transportation, and dry ice storage environment.

Atlas Log temperature data logger with an external probe is an ideal temperature monitoring solution for low-temperature shipments that requires frequent temperature samplings. It can be used in a wide range of applications such as monitoring dry-ice shipments, sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods, and shipping containers.

Biologics and vaccines have a short shelf life, so the temperature change during transportation should be controlled in time. Our Atlas Log Temperature Sensor with real-time temperature display is ideal for the pharmaceutical industry and biologics.
