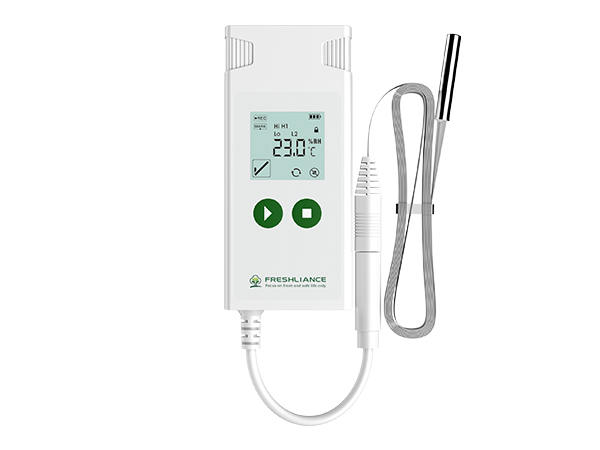

Atlas Log-TH Temperature Humidity Data Logger

Atlas Log-TH Temperature Humidity Data Logger

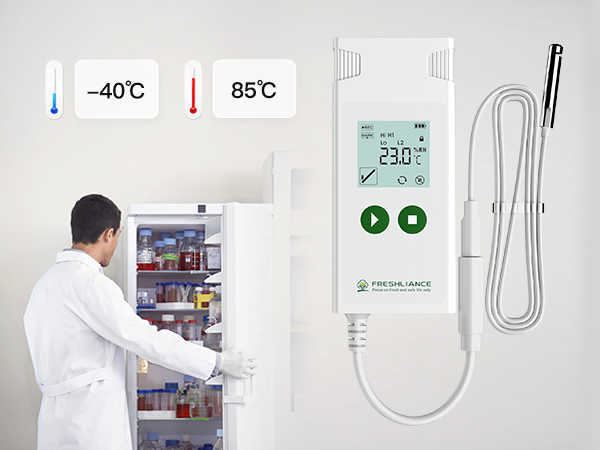

Temperature range: -40℃~+85℃

Humidity accuracy:  ±3% RH

Suitable for food, vaccines.

Single use/multi use, parameters configurable

Flexible ultra thin cable, 0.3mm thick and 7.5mm wide

Up to 6 alarm points can be set

Mark and pause function

Provision of temporary reports

Compatible with Windows and Mac OS alike

Automatic generation of encrypted reports



0-220322141954357.jpgIntroduction

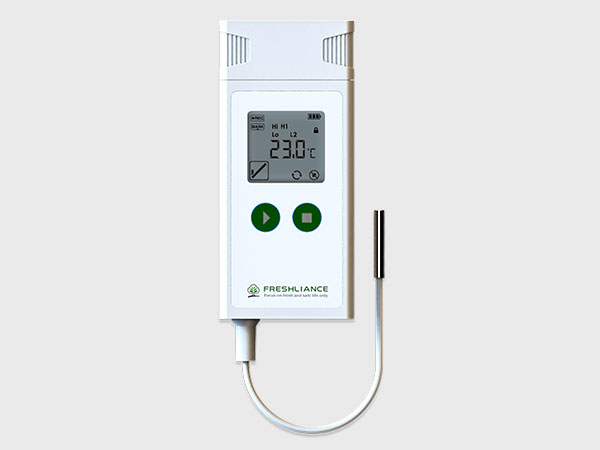

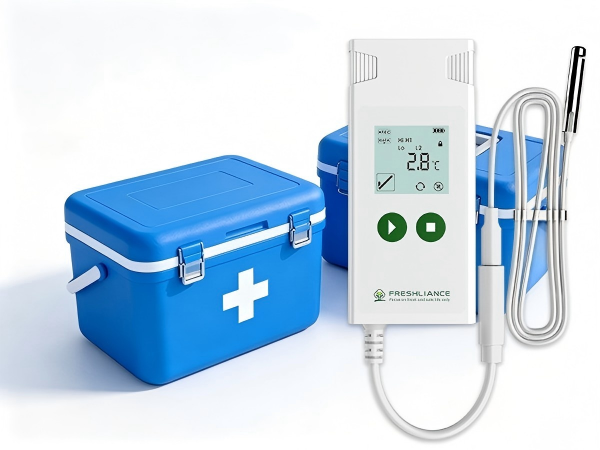

Atlas Log-TH is a Single use/multi use temperature and humidity data logger with an LCD screen. The USB thermograph features a high-resolution temperature range of -40 to 85°C. It comes with up to 35,000 readings with a real-time temperature and humidity display. Parameters can be freely configured on configuration software provided by our company. The built-in PDF / CSV file generation function enables this temperature and humidity data logger with an external probe to directly generate irreversible PDF/CSV reports on one computer, with no software required. This temperature data logger can be used for temperature and humidity monitoring in wide applications such as sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods, shipping containers, etc.



Features



Online software configuration

Parameters can be freely configured on the configuration software.

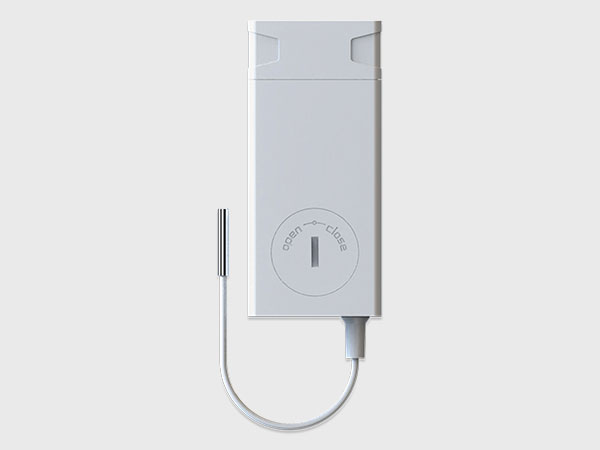

Battery replaceable

The battery is replaceable.


Alarm points and Mark function

Users can set up to 6 alarm points as needed, and make a mark in case of any key event. Up to 9 marks can be made.


Password protection

Passwords can be set to prevent others from unauthorized operations on the device.


High accuracy

The external probe can measure temperature from -40 to 85°C with high accuracy of ±0.5℃

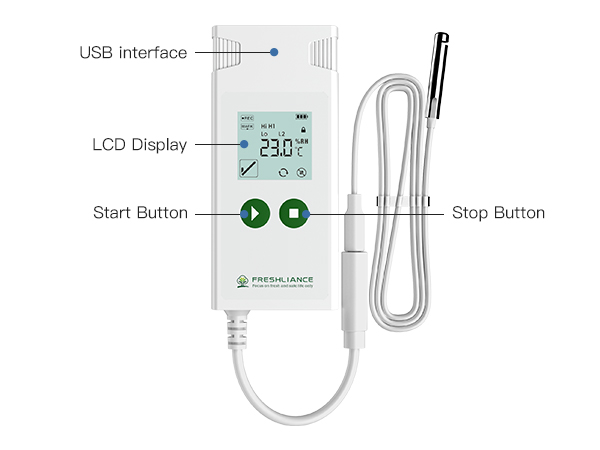

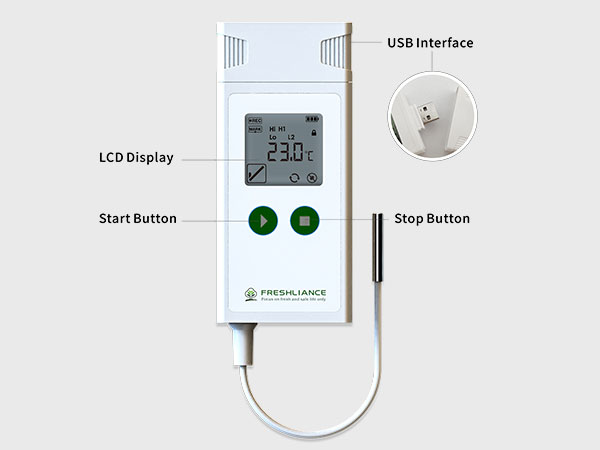

Intuitive LCD display

LCD screen displays, running status, current temperature and humidity, alarm status, battery level, alarm points, Max, Min, and Average temperature and humidity value, etc.


Temporary report available

The temporary mode allows this temperature and humidity data logger to continue working after users have exported and read the temporary report. Current configuration information can be viewed using the configuration software.

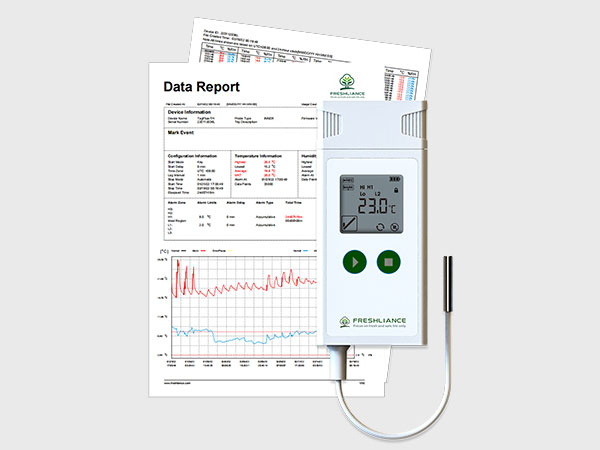

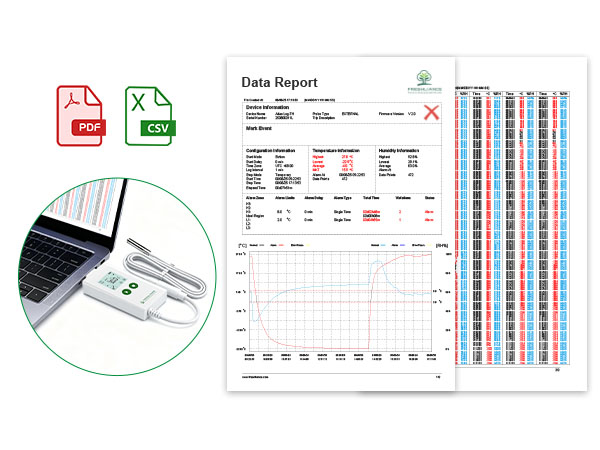

Automatic PDF/CSV data report

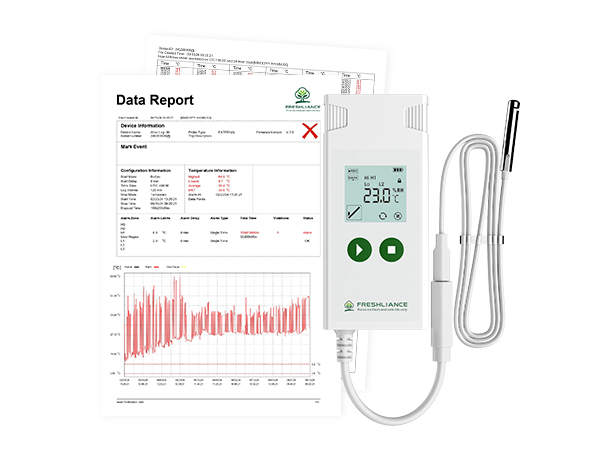

With USB connection to one computer, the temperature and humidity data logger will automatically generate PDF/CSV/PDF&CSV reports with graph and table, no software or reader required.

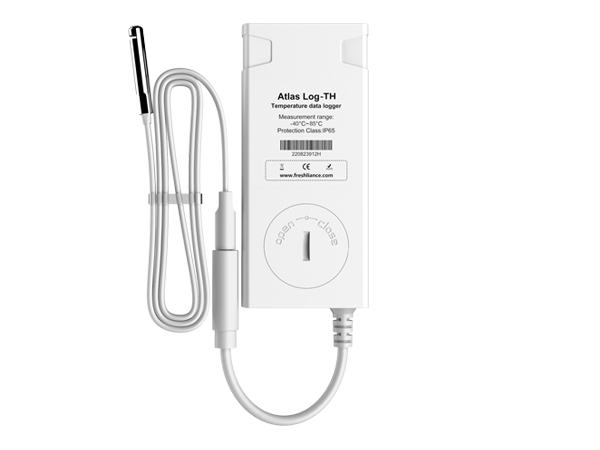

Multiple probe types optional

The external pluggable cable is normally 2m long and other cable lengths are customizable; and for enclosed or sealed spaces with higher sealing requirements, we also provide flexible ultra thin cable, which is 0.3mm thick and 7.5mm wide, suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head as required.


Temperature units switchable

Celsius (℃) and Fahrenheit (℉) can be freely switched.


Large memory capacity

Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.


Specifications


Model

Atlas Log-THType of UseSingle use/multi use

Protection Grade

IP65

Memory Capacity

PDF: Max. 35,000 readings;

PDF&CSV: Max. 2,0000 readings each

Temperature Range

-40℃~+85℃

Temperature Accuracy

±0.5℃ F.S.

Humidity Range

0~100%RH

Humidity Accuracy

±3% RH

Alarm Type

LCD screen display

Battery

CR2450

Resolution

0.1℃

Logging Interval

1 minute~24 hours

Start Delay

0 minute~24 hours

Report Format

Automatic PDF/CSV report

Connection

USB, NFC (optional)

Compatible OS

Windows, Mac

Certifications

CE, ROSH, EN12830

Dimensions

96mm*44mm*15mm



Applications

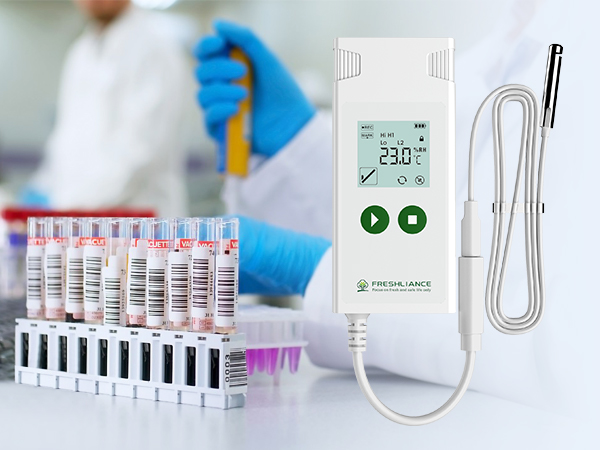

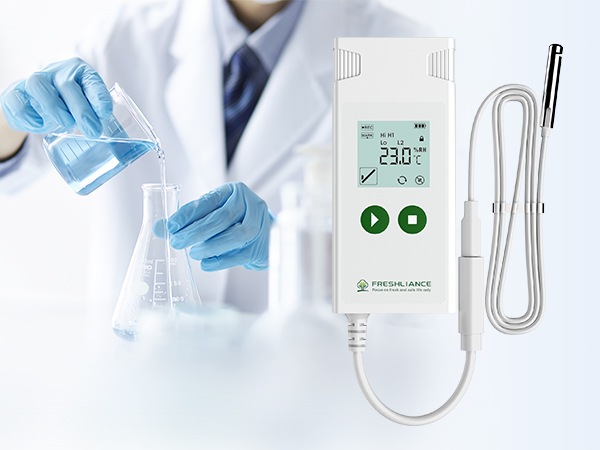

Atlas Log-TH single use/multi use Temperature and Humidity Data Logger with External Probe can be used for in-transit temperature and humidity records of biopharmaceuticals, life sciences, biological samples, blood cold chain, diagnostic reagents, including biological reagents, molecular reagents, COVID-19 reagents, and cell biology agents during the low-temperature environment.

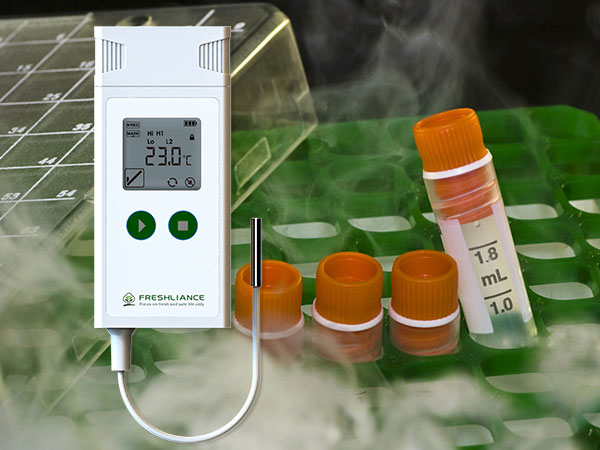

Our Atlas Log-TH single use/multi use Temperature and Humidity Data Logger has an external probe that can record and monitor the ultra-low temperature in cold storage, cold chain transportation, and dry ice storage environment.

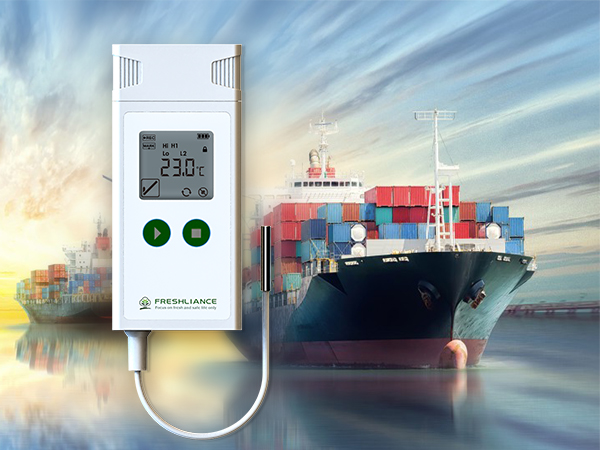

Atlas Log-TH temperature data logger with an external probe is an ideal temperature and humidity monitoring solution for shipments that requires frequent temperature sampling intervals. It can be used in a wide range of applications such as monitoring dry-ice shipments, sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods, and shipping containers.

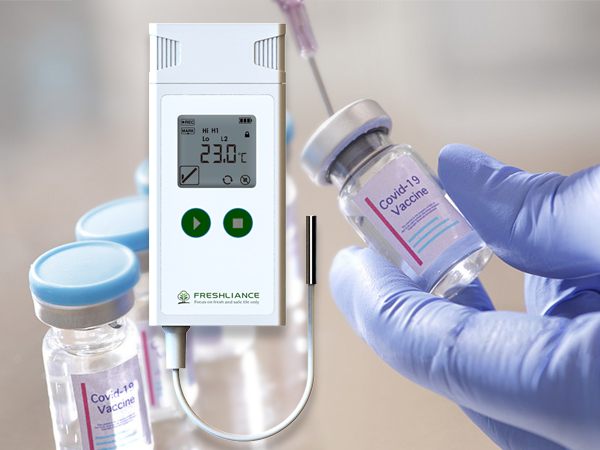

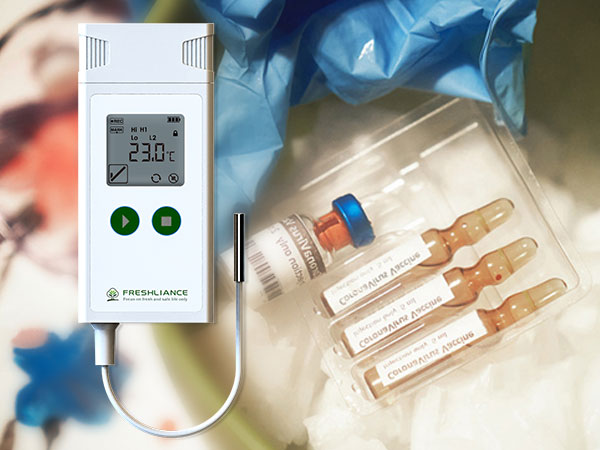

Biologics and vaccines have a short shelf life, so the temperature change during transportation should be controlled in time. Our Atlas Log-TH Temperature and Humidity Sensor with real-time temperature display is ideal for the pharmaceutical industry and biologics.

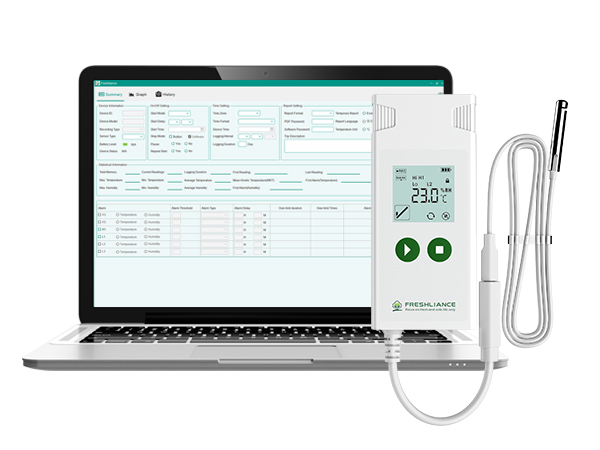

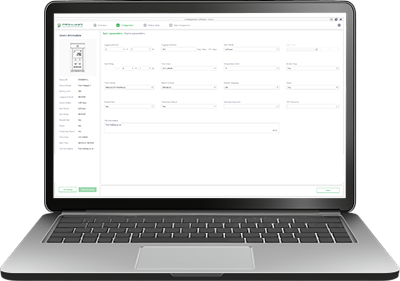

Freshliance Tools-ETH


Freshliance Tools-ETH is a desktop software specially designed for users to use Atlas Log-TH data logger. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.
