Enhancing Pharmaceutical Lyophilization Validation with Iron Tag 300 Temperature and Pressure Data Logger

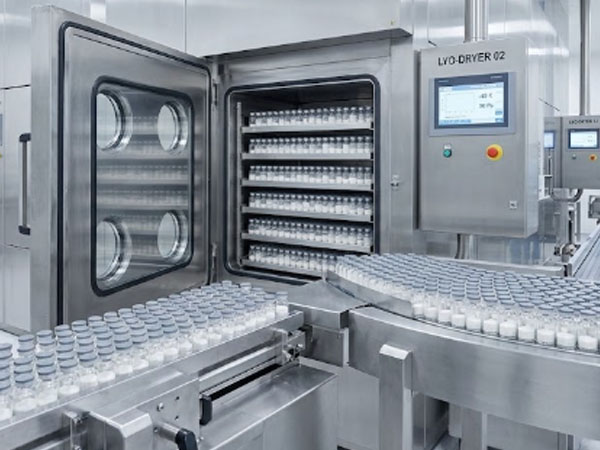

Lyophilization, or freeze-drying, serves as an indispensable manufacturing step for biopharmaceutical production. This specialized process stabilizes fragile biological materials, vaccines and injectable formulations, extending their shelf life and preserving core product efficacy. All freeze-drying cycle development and formal validation work relies on precise temperature mapping and continuous pressure profiling. These accurate data sets help engineering teams analyze real heat transfer conditions, confirm accurate primary drying endpoints, and guarantee consistent batch-to-batch production quality across pharmaceutical workflows.
Built specifically to meet strict pharmaceutical lyophilization validation standards, the Freshliance Iron Tag 300 temperature and pressure data logger excels at synchronized temperature and pressure tracking for lyophilization workflows. Fitted inside a durable compact stainless steel body, this data logger captures stable, repeatable process data covering the full freeze-drying workflow, including freezing, primary drying and secondary drying phases. It solves the common data instability issues faced during traditional lyophilization validation, supporting reliable cycle analysis and process verification for pharmaceutical production teams.
1. Accurate Shelf Temperature Mapping During Freezing

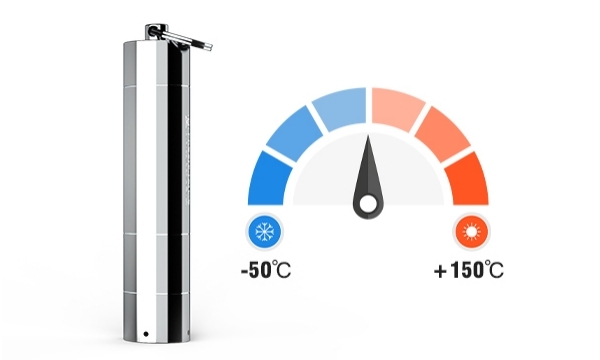

The freezing phase defines the final ice crystal structure, which directly dictates subsequent drying efficiency and overall batch quality. Uneven shelf temperature distribution across lyophilization chambers leads to inconsistent freezing states and unbalanced drying rates between product batches. Built for professional lyophilization cycle validation, the Iron Tag 300 stainless steel temperature data logger features a temperature measurement range from -50°C to +150°C, with precision accuracy of ±0.3°C within -40°C to +100°C, delivering fine-grained temperature profiling for full-cycle validation analysis.
Its compact 316 stainless-steel housing (φ26 mm × 122 mm) delivers strong mechanical resistance and outstanding corrosion tolerance, fitting neatly inside lyophilization chambers for stable placement in rigorous pharmaceutical production environments. The industry-grade IP68 enclosure fully shields internal sensing components from moisture intrusion and external contamination throughout all validation testing procedures.
2. Monitoring Temperature and Pressure Profiles During Primary Drying
As the most critical stage in the entire lyophilization workflow, primary drying removes ice content through vacuum-based sublimation. Stable product temperature and consistent chamber pressure are essential to avoid excessive thermal stress, which directly protects finished drug quality. The Iron Tag 300 rugged temperature monitor records temperature and pressure data synchronously throughout ongoing drying cycles, enabling process engineers to analyze pressure fluctuation, dynamic temperature trends and comprehensive drying behavioral patterns.
Equipped with integrated pressure sensing technology and a fully sealed stainless steel structure, the logger adapts perfectly to low-pressure vacuum lyophilization environments. It provides high-credibility data support for primary drying endpoint judgment and targeted lyophilization cycle optimization.
3. Supporting Secondary Drying Verification and Data Integrity
Secondary drying gradually elevates shelf temperatures to strip residual bound water from products. This validation phase often lasts multiple hours, requiring stable, long-duration data recording without interruption. Reliable continuous logging is key to complete and compliant lyophilization validation records.
The Iron Tag 300 temperature and pressure data logger features large-capacity onboard storage, supporting up to 35,000 measurement points for standalone PDF report generation, or 20,000 measurement points for dual PDF and CSV file export. This comprehensive storage capacity ensures full-process data archiving, completely free from wireless signal instability or transmission limitations.
Once a lyophilization cycle finishes, users can directly connect the logger to any PC via its built-in USB Type-C port. Paired with official Freshliance supporting software, the system automatically generates complete validation reports, including visualized temperature and pressure curves and standardized tabulated measurement data for audit and archival use.
4. Designed for Pharmaceutical Lyophilization Validation Applications
Every Iron Tag 300 stainless steel temperature data logger completes professional calibration in ISO/IEC 17025 accredited laboratories before delivery, with all measurement data fully traceable to authoritative national standards. Integrating rugged stainless steel construction, high-precision sensing, large data storage and one-click report generation, the Iron Tag 300 temperature monitor offers a tailored, reliable solution for pharmaceutical lyophilization validation, equipment performance qualification and routine production cycle verification.
Conclusion
Accurate, uninterrupted data collection lays the foundation for credible lyophilization process validation in pharmaceutical manufacturing. Delivering synchronous, high-precision temperature and pressure monitoring across every lyophilization stage, the Freshliance Iron Tag 300 temperature and pressure data logger for freezer drying empowers pharmaceutical professionals to accurately analyze process characteristics, streamline validation workflows, and maintain stable, trustworthy data quality for critical drug manufacturing processes.
