Fresh Tag 10T Single Use Temperature Data Logger

Fresh Tag 10T Single Use Temperature Data Logger

Parameters Configurable

Max. 65000 readings

Max. 120 working days

LCD display & LED indication

Alarm for abnormal status

IP65 protection grade

Encrypted PDF report automatic generation

Display Max./Min/Average Value, Alarm time, Remaining Days, etc.


Introduction


Fresh Tag 10 T is a single use temperature data logger. This data logger is designed for recording and monitoring the temperature changes of sensitive products during their transportation and storage. They can be widely used in each stage of cold chains, such as refrigerated containers, refrigerated trucks, cooler bags, cooling cabinets, medical cabinets, freezers, and laboratories.


This series of data loggers feature a large LCD screen for intuitive display. They can work for up to 120 days. Parameters can be configured on our free configuration software. After the trip is finished, connecting this logger to the computer, then PDF/CSV/PDF&CSV reports will be generated automatically without using the software.


Features


Parameters configurable

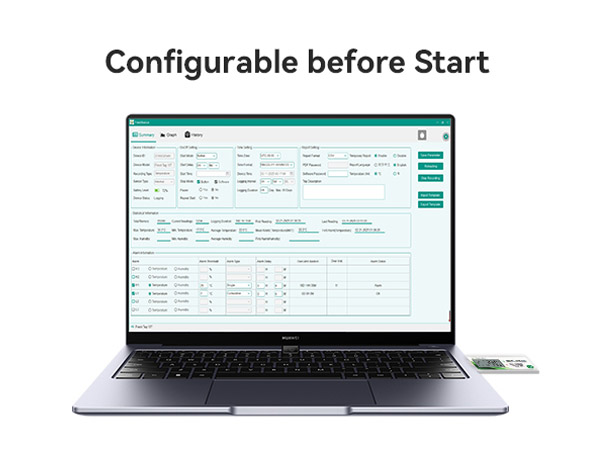

Its parameters can be preset according to your needs on our free configuration software.


Long battery life and large memory capacity

This usb temperature data logger can work for up to 120 days. And its memory capacity can reach up to 65000 readings.

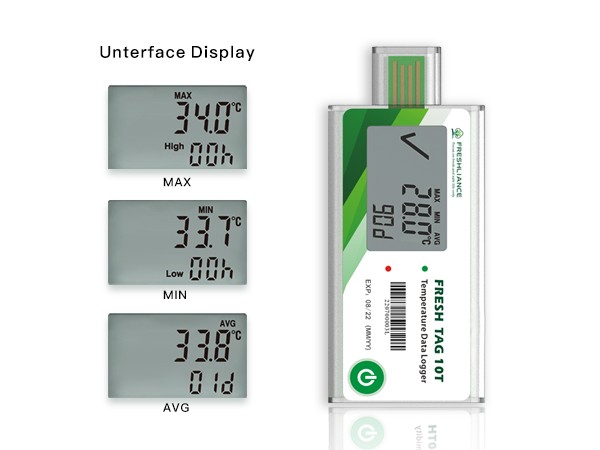

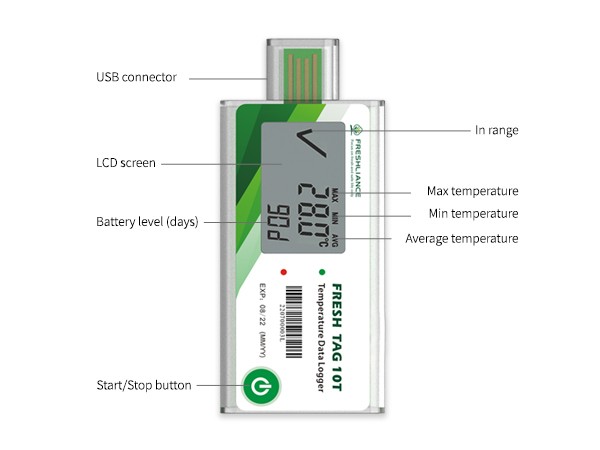

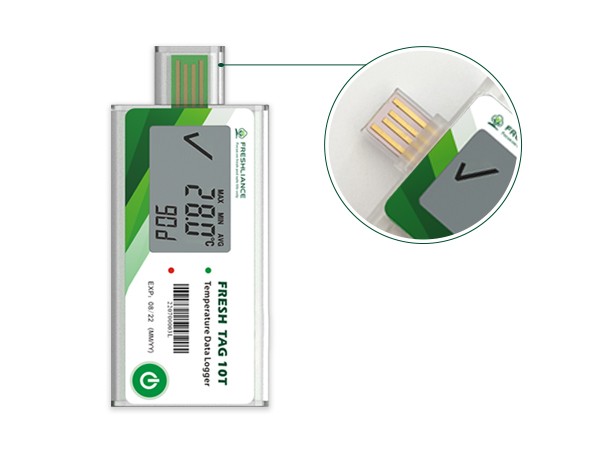

Small size but large display

This temperature data logger has a compact profile and lightweight design, but the LCD screen accounts for a large proportion. It can show ample and various data intuitively. Moreover, its green and red LED lights can indicate its different status.


Easy to place and operate

The small and light disposable USB thermograph can be placed anywhere. It requires no software or drivers to set up or download data.


Alarm for abnormal status

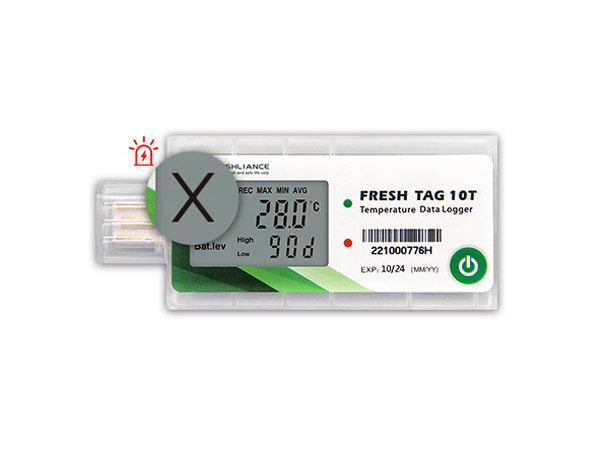

Once the temperature is out of the configured alarm range, this single use temperature data logger will alarm through the alarm symbol on the LCD screen and the red LED light will flash.

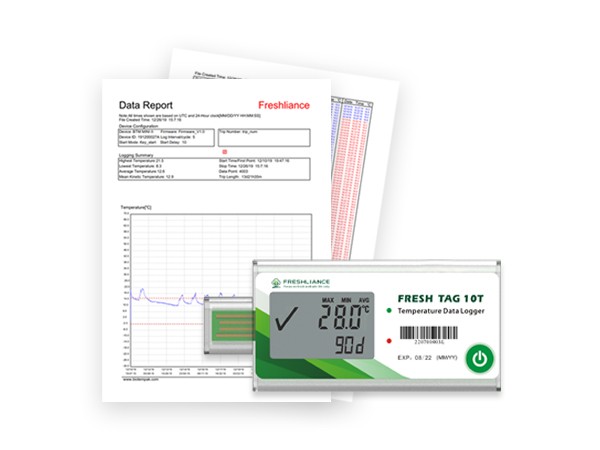

Encrypted reports automatic generation

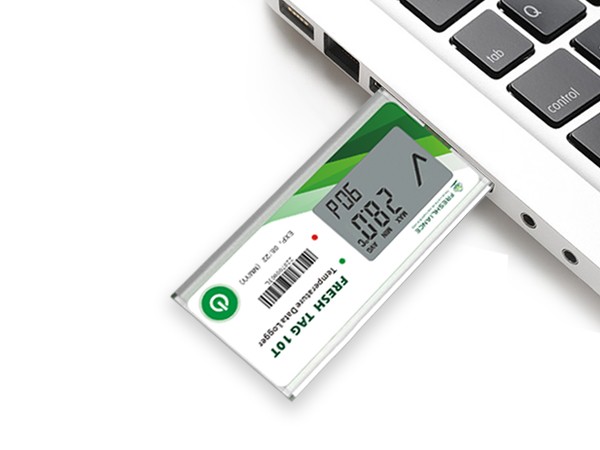

After the trip is finished, connect the usb temperature logger to the computer, the irreversible reports with graphs and tables will be generated automatically, with no cable or reader required.


IP65 protection grade

A protective plastic case helps keep the USB temperature sensor dry and eliminates concerns when transporting products with cold packs, ice, or in damp environments.



Specifications


Model

Fresh Tag 10T

Working Days

Up to 120 days

Temperature Range

-30℃~70℃

Temperature Accuracy

±0.5℃ at full range (-30℃ to +70℃)

Logging Interval

Configurable

Connection

USB, NFC (optional)

Start Delay

Configurable

Protection Grade

IP65

Memory Capacity

PDF: Max. 65000 readings

PDF&CSV: Max. 20000 readings

Battery

CR2032

Display

LCD, LED

Alarm Points

Max. 6 alarm points

Dimensions

94mm(L)*41mm(W)*8mm(H)

Weight

27.5g


Applications


Fresh Tag 10T single use temperature data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.


For meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.

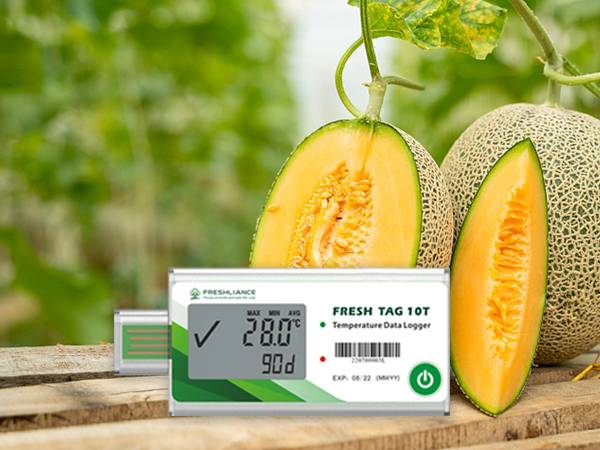

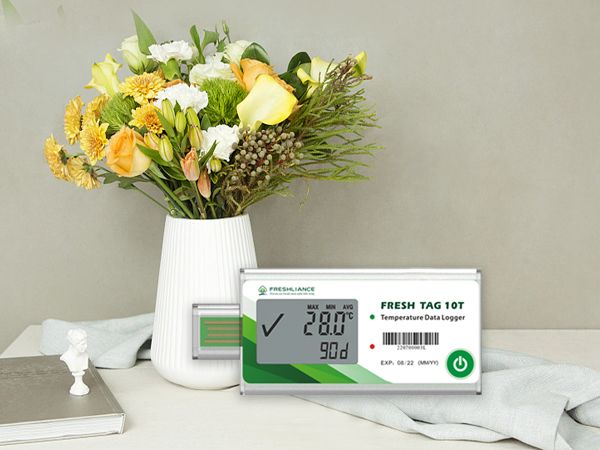

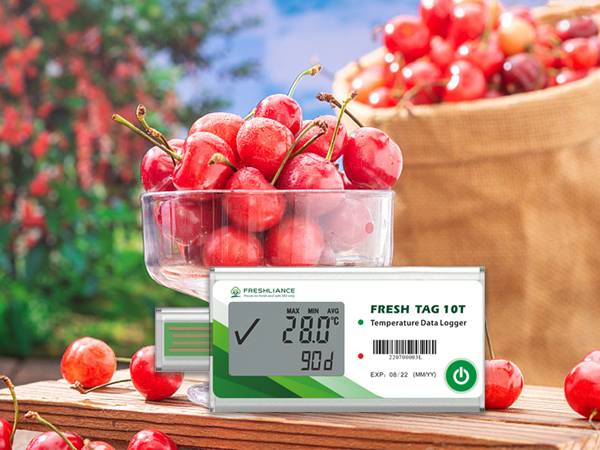

For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.



The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.



The data recording by these usb temperature data loggers is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.



Freshliance provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.

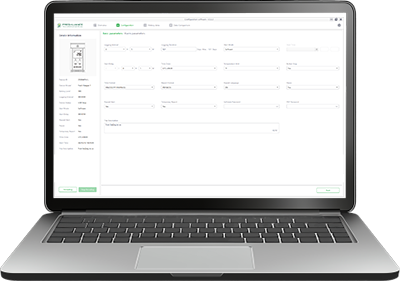

Freshliance Tools

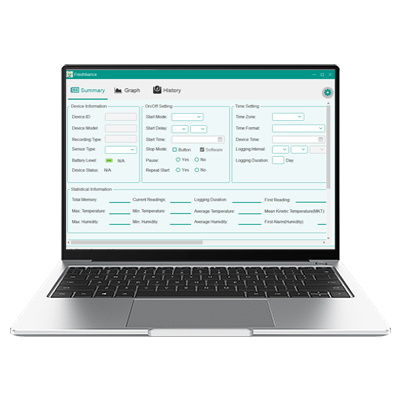

Freshliance Tools is a desktop software for users to use Freshliance USB data loggers. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.


The software is designed for Fresh Tag 10T/TH, Thermis Log 10T/TH, Tagplus-T/TH, Atlas Log-30/60/90/200/IUT, Rugged data logger, Keeper 1/IUT, COEUS-UEX.
