TagPlus-TH  Temperature Humidity Data loggers

TagPlus-TH Temperature Humidity Data loggers

Multi-use, configurable parameters

Temporary reports available

Up to 9 event markers

Up to 6 alarm points

Battery life up to 180 days, replaceable batteries

±0.5℃ at full range (-30℃ to +70℃)

Compatible with Windows and Mac OS alike

35,000 readings maximum memory capacity

202111080935391803.jpgIntroduction

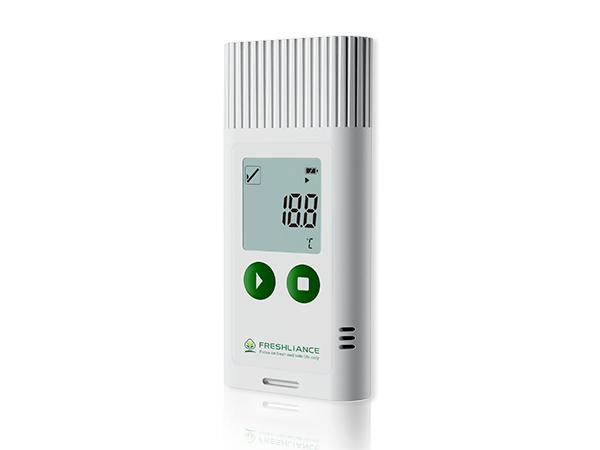

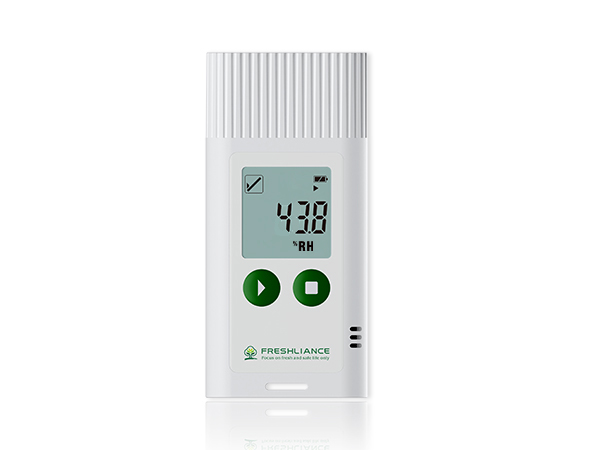

TagPlus-TH is a multiple-use temperature and humidity data logger with an LCD screen for easy viewing of temperature data. In this device, parameters can be configured by a professional user before use. Complete trip history is recorded and downloaded as encrypted reports with summary data, graphs, and tables, the report can be directly read by PC at the destination. And the temporary mode allows this Thermometer Hygrometer to continue working after users have generated and read the temporary report. It is an ideal choice for monitoring and recording the temperature and humidity changes of sensitive goods during transportation.


Features

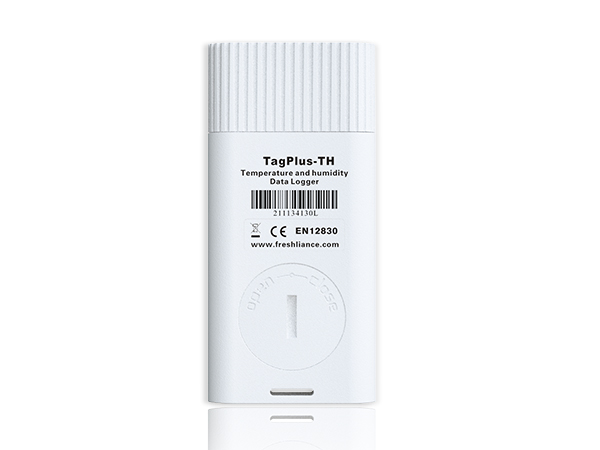

Battery replaceable

Up to 180 days battery life and then can change the battery.


Intuitive LCD screen

LCD screen display all parameters, Max, Min, Average temperature value, and high/low alarming curve.


Temporary report available

The temporary mode allows the USB Thermograph to continue working after users have generated and read the temporary report.


Automatic PDF/CSV data report

PDF/CSV/PDF+CSV format reports with graph and table are automatically generated, with no cable or reader required.


CE, RoHS, EN12830

Complies to EN12830, it can be used for transportation, storage, and distribution of food.


Smart application and reminder

To avoid reports missing, reuse is available after the report is downloaded. When the memory is full, it will automatically stop recording. The Thermometer has a battery exhaustion reminder and reconfiguration reminder for time accuracy.


Temperature units switchable

Celsius (℃) and Fahrenheit (℉) can be freely switched.



Large memory capacity

Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.



Specifications


ModelTagplus-THTypeReusable
Temperature Range-30℃~+70℃Temperature Accuracy±0.5℃ at full range (-30℃ to +70℃)
Humidity Range0~100%RHHumidity Accuracy±3%RH
Resolution0.1℃, 0.1%RHMemory Capacity35000 readings PDF only, 20000 readings PDF & CSV
Report FormatPDF/CSV/PDF&CSVRun DaysMax.180 days
Report OutputAutomatic, no software neededConnectionUSB, NFC (optional)
Compatible OSWindows, MacLogging Interval

1 minute-24 hours

Start Delay0 minute-24 hoursProtection GradeIP65
Battery3.0V CR2032 lithium batteryParameters ConfigurableYes
Dimension82mm*39mm*13.5mmWeight29.3g
LCD Screen DisplayTemperature value, Max/Min/Average value, Out of alarm range symbol, High/Low alarm curve, Battery level


Applications


TagPlus-TH Multi-use LCD Display Temperature and Humidity Data Logger USB PDF for Shipping Reefers is important to cold chain transportation for perishable products, especially food products. A non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.


For meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.


For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.


The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.


TagPlus-TH USB Sensor Temperature Data Logger with a large temperature humidity display is a necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.


Freshliance provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded irreversible, PDF Logging, CSV temperature history, and online IoT logging in any format are available.
