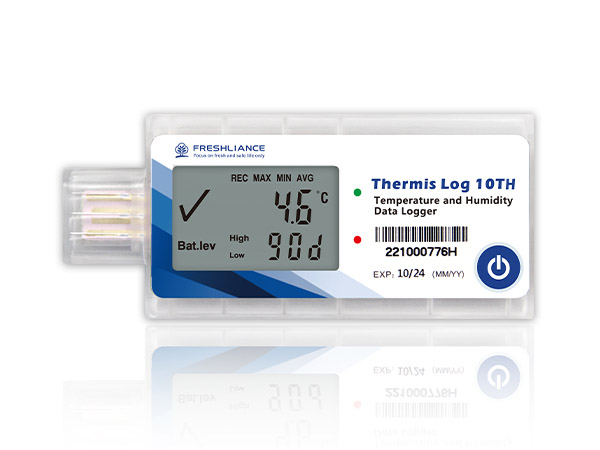

Thermis Log 10TH USB Temperature Humidity Data Loggers

Thermis Log 10TH USB Temperature Humidity Data Loggers

±0.3℃ and ±3%RH High accuracy for pharmaceuticals

Parameters configurable

Temporary temperature, Mark available

Built-in calibration verification

IP65 Professional protection grade

Compatible with Windows and Mac OS alike


Introduction

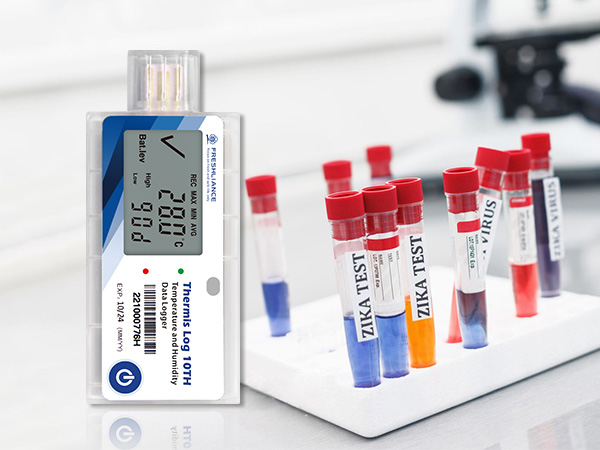

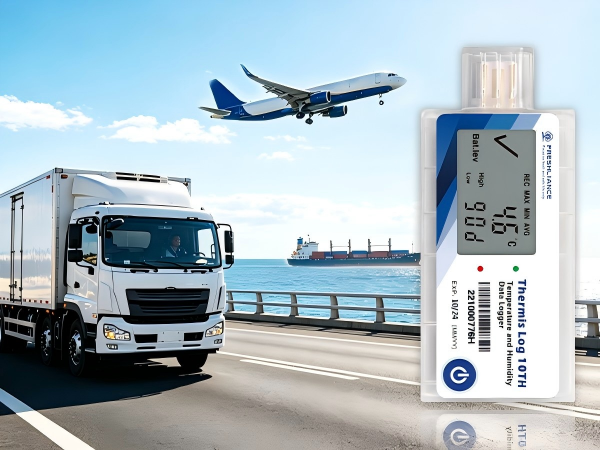

Thermis Log 10TH Single use Temperature Humidity Data Logger features an LCD screen and a measurement accuracy of ±0.3°C for temperature and ±3%RH for humidity. It is ideal for sensitive products transport and storage, especially pharmaceuticals. The logger is of food-grade and waterproof packaging material, compact, thin.



Thermis Log 10TH Single-use Temperature and Humidity Data Logger has built-in calibration verification. PDF and CSV reports are available after the logger is connected to the PC directly without any additional software.



Specifications


Model

Thermis Log 10TH

Type of Use

Single use

Temperature Range

-30℃~+70℃

Temperature Accuracy

±0.3 F.S.

Humidity Range

0%~100%RH

Humidity Accuracy

±3%RH(25℃, 20%~80%RH);

                     ±5%RH(Others)

Battery Life

Max. 120 days

Display

LCD, LED

Logging Interval

Configurable

Connection

USB, NFC (optional)

Start Delay

Configurable

Protection Grade

IP65

Memory Capacity

Max. 65,000 readings

Battery

CR2032

Marks

Max. 9 marks

Alarm Points

Max. 6 alarm points

Dimensions

94mm(L)*41mm(W)*8mm(H)

Weight

27.5g




Feature


Long working time with high accuracy

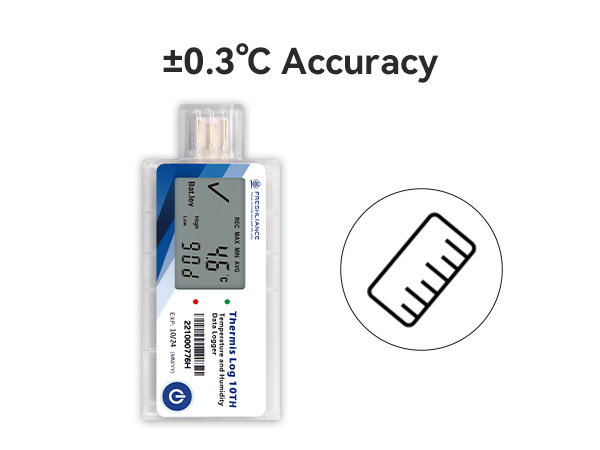

This logger can work for up to 120 days with temperature accuracy of ±0.3℃ F.S. and humidity accuracy of ±3% RH, suitable for the pharmaceutical industry.


Parameters programmable

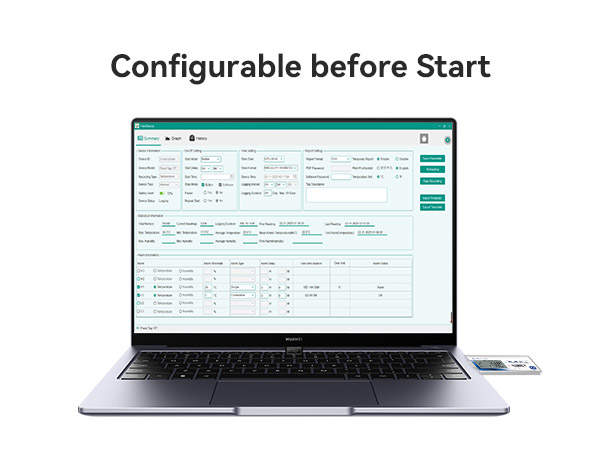

Parameters are configurable before start. Up to 6 alarm points can be made.


Large memory capacity

Max. 65,000 readings memory capacity

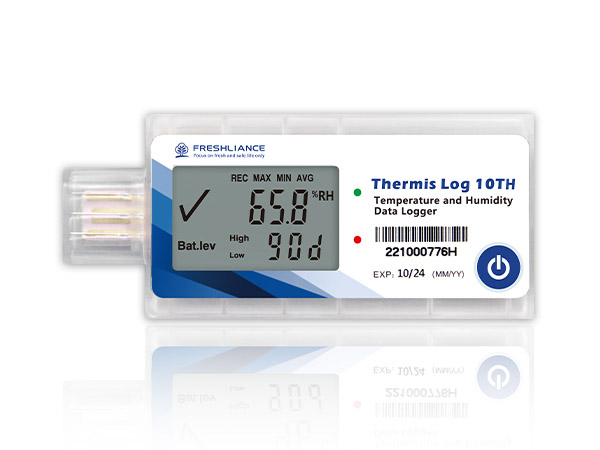

Large LCD Screen

Large screen displays real-time temperature data and humidity, alarm status, Max. Min. Avg. etc.


Automatic report generation

Irreversible PDF/CSV reports are generated without software after the logger is connected to PC. Temporary report is available.


Mark function

Up to 9 marks can be made in the recording trip, convenient for users to mark some key events.



Applications

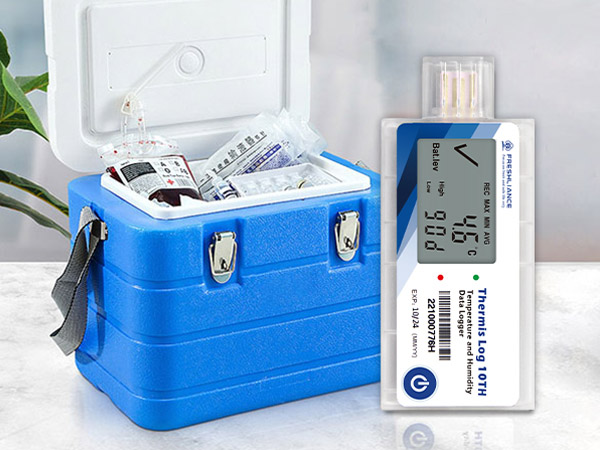

Freshliance Thermis Log 10TH Single Use sensor temperature USB data logger adopts the sensor made in Japan. And the USB temperature sensor is suitable for pharmaceuticals, food, life science, cooler boxes, medical cabinets, fresh food cabinets, freezers, or laboratories that request high accuracy. Freshliance provides all kinds of environmental logging solutions to make sure every change in the whole cold chain solution will be traced and recorded irreversibly.



Freshliance Tools

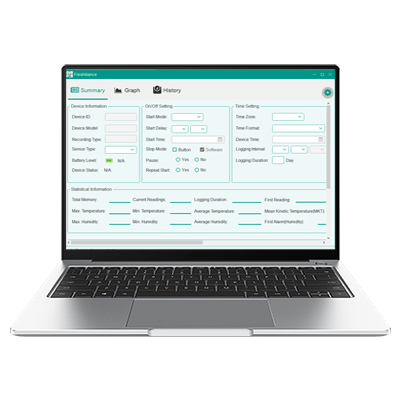

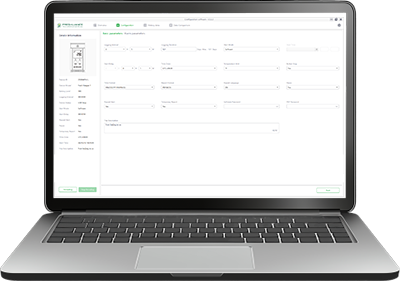

Freshliance Tools is a PC software designed for easy configuration, data retrieval, and analysis of Freshliance USB data loggers. Once a logger is connected via USB, the software automatically detects the device and displays key information such as device ID, battery level, logging interval, device status and start mode. Users can view temperature and humidity trends in interactive graphs, access detailed data logs, and get statistics including max/min/average values and MKT.


The software supports flexible report export in PDF, CSV, TXT  or PNG format across multiple languages, and allows full configuration of logging parameters, alarm thresholds, time zones, and report settings. The software also supports data comparison of multiple devices on a same chart, allowing users to easily identify discrepancies and analyze performance across different loggers.
