Fresh Tag 10TH Temperature and Humidity Data Logger

Fresh Tag 10TH Temperature and Humidity Data Logger

Parameters Configurable

Max. 65000 readings

Max. 120 working days

LCD display & LED Alarm for abnormal status

Alarm for abnormal status

IP65 protection grade

Encrypted PDF report automatic generation

Display Max./Min/Average Value, Alarm time, Remaining Days, etc.


Introduction


Fresh Tag 10TH is a temperature-humidity logger. This series of data loggers are designed for recording and monitoring the temperature/humidity changes of sensitive products during their transportation and storage. They can be widely used in each stage of cold chains, such as refrigerated containers, refrigerated trucks, cooler bags, cooling cabinets, medical cabinets, freezers, and laboratories.


This series of data loggers feature a large LCD screen for intuitive display. They can work for up to 120 days. Parameters can be configured on our free configuration software. After the trip is finished, connecting this logger to the computer, then PDF/CSV/PDF&CSV reports will be generated automatically without using the software.



Features

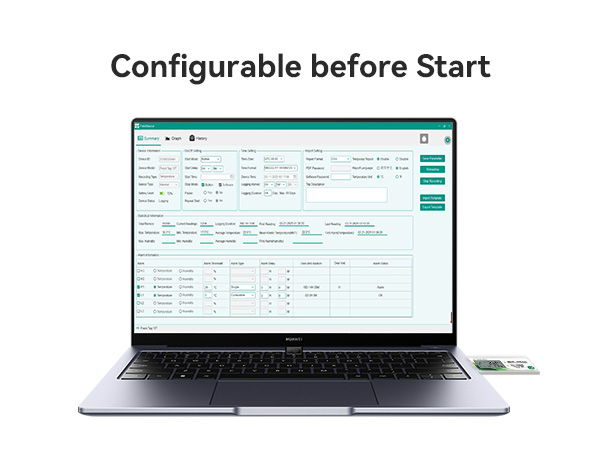

Parameters configurable

Its parameters can be preset according to your needs on our free configuration software.


Long battery life and large memory capacity

This usb temperature/humidity data logger can work for up to 120 days. And its memory capacity can reach up to 65000 readings.

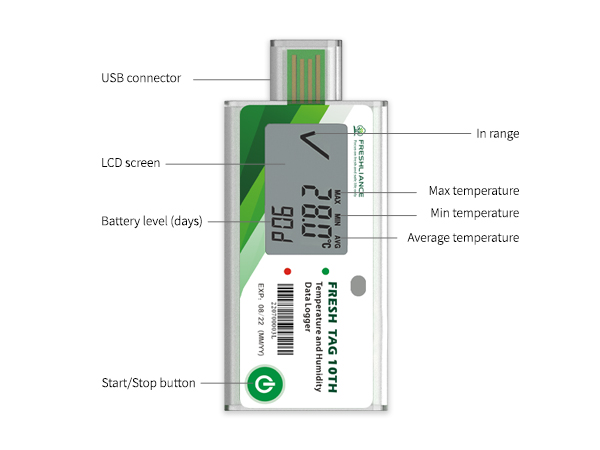

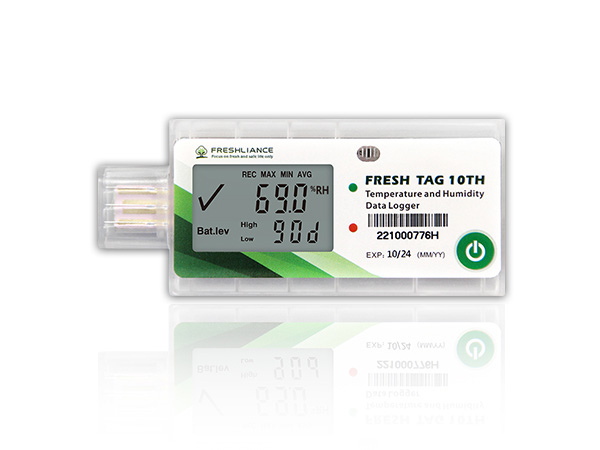

Small size but large display

This temperature/humidity data logger has a compact profile and lightweight design, but the LCD screen accounts for a large proportion. It can show ample and various data intuitively. Moreover, its green and red LED lights can indicate its different status.

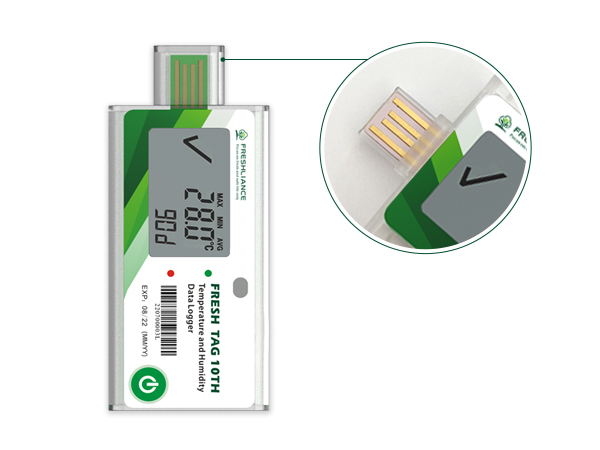

Easy to place and operate

The small and light disposable usb temperature/humidity data logger can be placed anywhere. It requires no software or drivers to set up or download data.

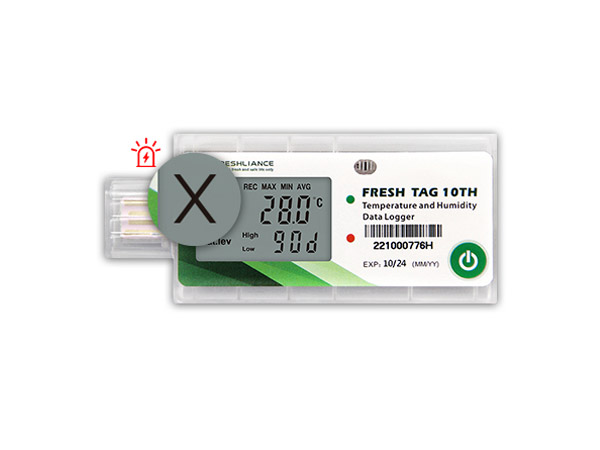

Alarm for abnormal status

Once the temperature or humidity is out of the configured alarm range, this single use temperature/humidity data logger will alarm through the alarm symbol on the LCD screen and the red LED light will flash.

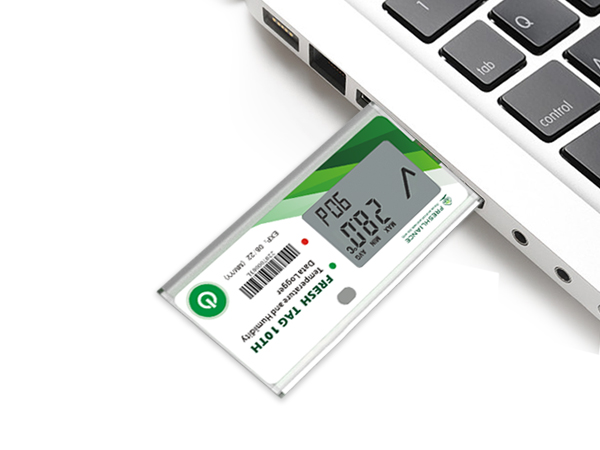

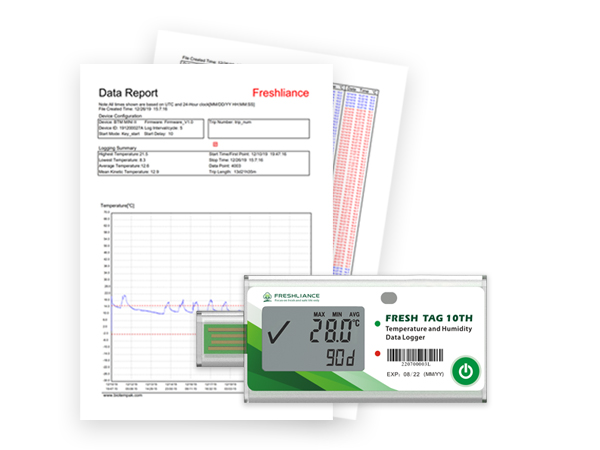

Encrypted reports automatic generation

After the trip is finished, connect the usb temperature/humidity logger to the computer, the irreversible reports with graphs and tables will be generated automatically, with no cable or reader required.

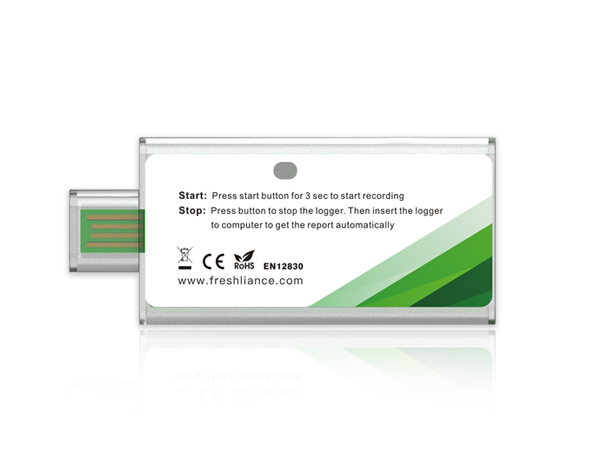

IP65 protection grade

A protective plastic case helps keep the USB temperature/humidity sensor dry and eliminates concerns when transporting products with cold packs, ice, or in damp environments.


Specifications


Model

Fresh Tag 10TH

Working Days

Up to 120 days

Temperature Range

-30℃~70℃

Temperature Accuracy

±0.5℃ at full range (-30℃ to +70℃)

Humidity Range

0%~100%RH

Humidity Accuracy

±3%RH

Logging Interval

Configurable

Connection

USB, NFC (optional)

Start Delay

Configurable

Protection Grade

IP65

Memory Capacity

PDF: Max. 65000 readings

PDF&CSV: Max. 20000 readings

Battery

CR2032

Display

LCD, LED

Alarm Points

Max. 6 alarm points

Dimensions

94mm(L)*41mm(W)*8mm(H)

Weight

27.5g


Applications


Fresh Tag 10TH single use temperature/humidity data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.


For meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.



For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.



The environmental condition of sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.



The data recording by these usb temperature/humidity data loggers is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.



Freshliance provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.
