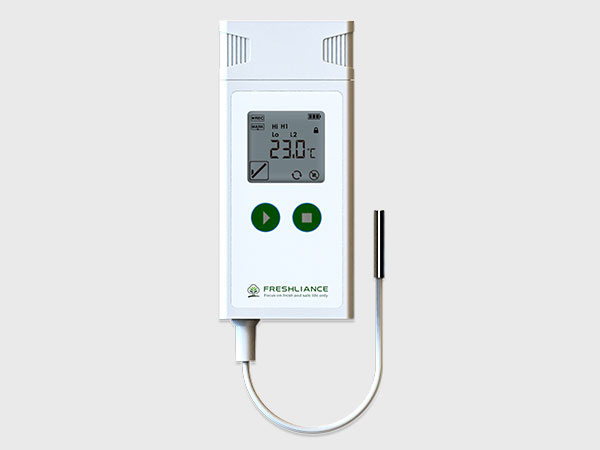

Atlas Log is a multi-use temperature data logger with an LCD display. The USB thermograph features with high-resolution temperature range of -30 to 70°C, -90°C to 200°C, -200°C to +90°C, for up to 35,000 readings with real-time temperature display. Parameters can be freely configured by using configuration software provided by our company. The built-in PDF / CSV file generation function enable this temperature data logger with probe to directly generate irreversible data reports in PDF / CSV format, no software required. This temperature monitor can be used for a wide range of applications such as sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods and shipping containers, etc.
Features
Online Software Configuration
Parameters can be freely configured by using configuration software.

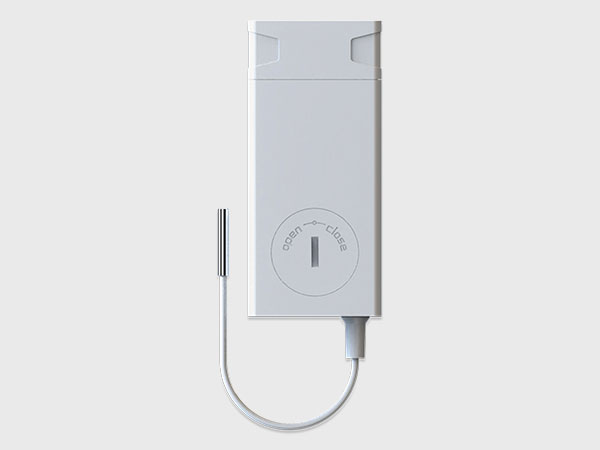

Battery replaceable
Up to 180 working days. The battery is replaceable for repeated use.
Alarming points setting and Mark function
Freely setting according needs, up to 6 alarm points can be set. Up to 9 marks available.
Password Protection
password can be set to prevent others from unauthorized operations on the device.
High accuracy and large data capacity
External probe can measure temperature as low as -200℃ with high accuracy. Up to 35,000 memory capacity.

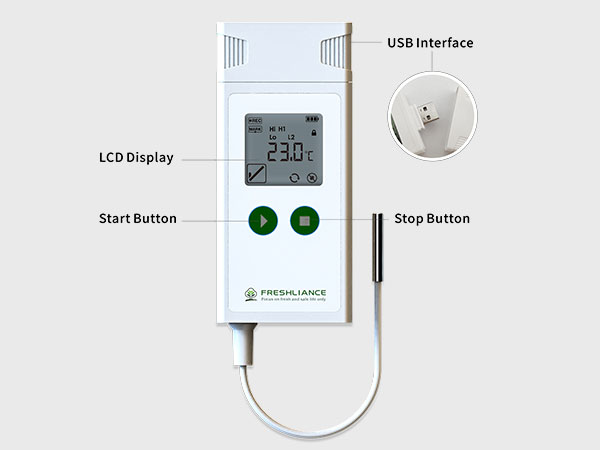

Intuitive LCD Display
LCD display all parameters, running status, current temperature, alarm status, battery level, alarm points, Max, Min, Average temperature value .
Temporary Report Available
The temporary mode allows this temperature data logger to continue working after users have generated and read a temporary report. Current data information can be viewed using configuration software.

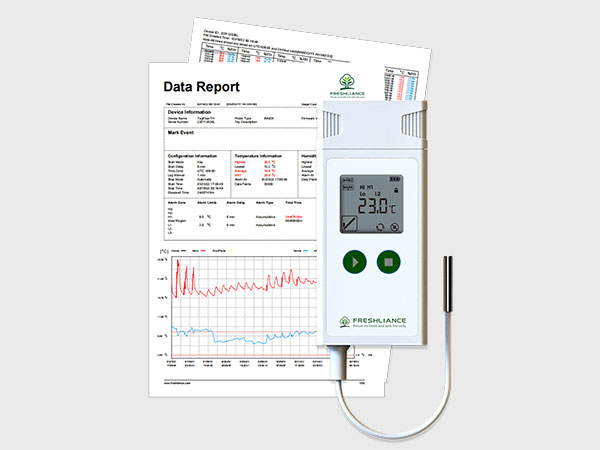

Automatic PDF/CSV data report
PDF/CSV/PDF+CSV format report with graph and table are automatically generated, no cable or reader required.
Technical parameters
Model | Atlas Log | Temperature Range |
-30℃~+70℃ /-22℉~158℉ -90℃~+200℃/-130℉~392℉ -200℃~90℃/-328℉~194℉ |
Type | Multi-use | Accuracy |
±0.5℃/0.9℉(-90℃~+70℃/-130℉~158℉) ±1℃/1.8℉(Others) |
Logging Interval |
1 min~ 24 hours | Memory Capacity |
35000 readings PDF only, 20000 readings PDF & CSV
|
Mark | Max. 9 points | Alarm
| Max. 6 points |
Connection | USB connector | Alarm Type | LCD display, buzzer alarm (About 60 dB at 3m) |
Power | CR2450 | Operating Life | Max.180 days |
Size |
96mm L*44mm W*15mm H |
|
|
Applications

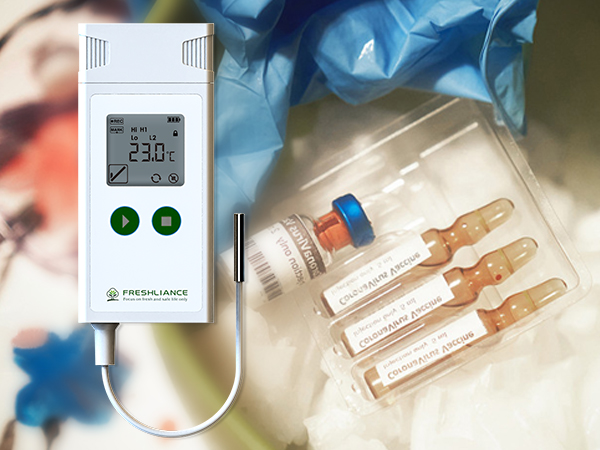

Atlas Log multi-use temperature data logger with LCD display can be used for in transit record of bio-pharmaceuticals, life sciences, biological samples, blood cold chain, diagnostic reagents, including biological reagents, molecular reagents, COVID-19 reagents and cell biology agents during low temperature environment.

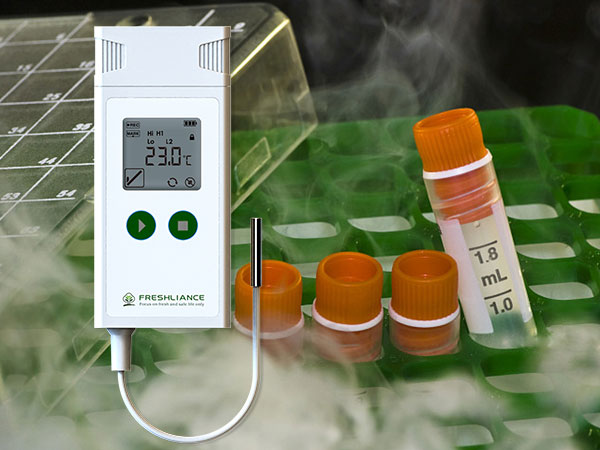

Our Atlas Log multi-use temperature recorder has external probe, can record and monitor the ultra-low temperature in cold storage, cold chain transportation and dry ice storage environment.

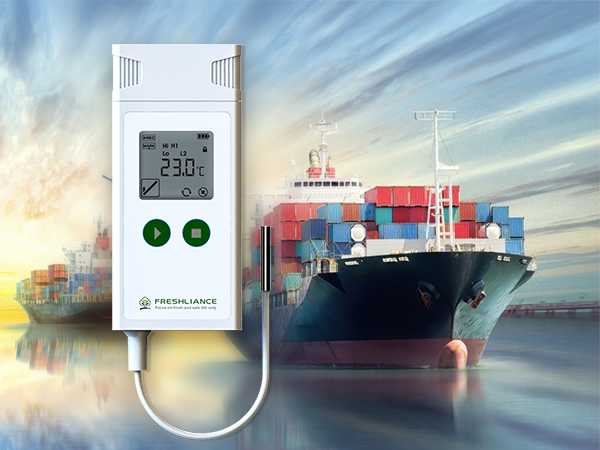

Atlas Log temperature data logger with external probe is ideal temperature monitoring solution for low shipments and requiring frequent temperature sampling intervals. It can be used in a wide range of applications such as monitoring dry-ice shipments, sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods and shipping containers.

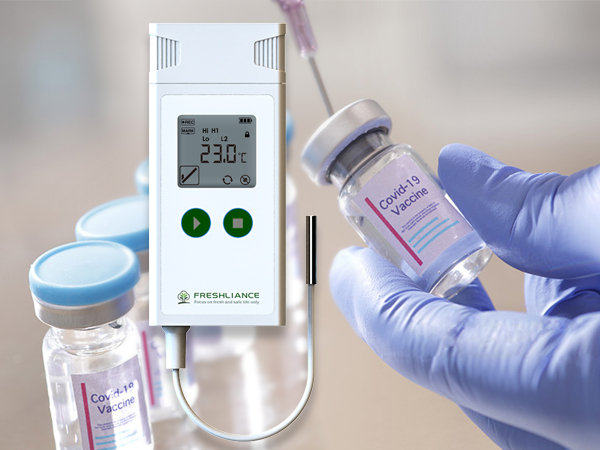

Biologics and vaccines have a short shelf life, so the temperature change during transportation should be controlled in time. Our Atlas Log Temperature Sensor with real-time temperature display are ideal for the pharmaceutical industry and biologics.
