Wireless Temperature and Humidity Data Logger for Cigar and Red Wine Storage

Large LCD screen for real-time data display

Configure parameters through the app

Transmit data through the Wifi network

Audible and visual alarms, the alarm can be mute

Battery rechargeable, support direct power supply

Desktop or wall, a variety of application scenarios



0-22032ZS640952.jpgIntroduction

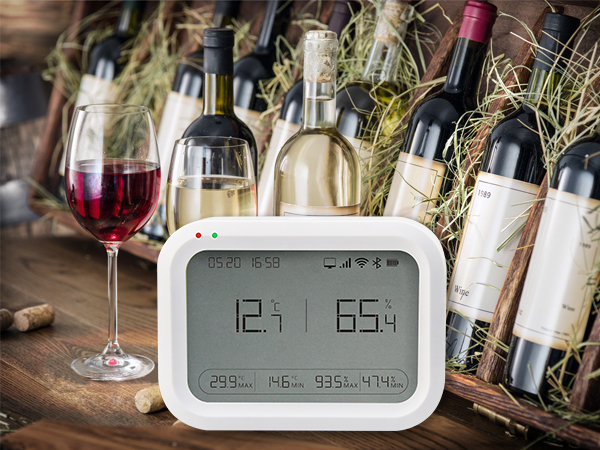

COEUS-WIFI is a configurable and rechargeable WIFI temperature and humidity data logger with a large LCD screen. The built-in PDF / CSV file generation function enables this temperature sensor to directly generate irreversible reports, with no software required. It features a high-resolution temperature range of -20°C to +50°C, for up to 360 working days with real-time temperature and humidity data and time. This temperature data logger can be used in indoor temperature monitoring, as the storage of cigars and red wine.

Features



Support audible and visual alarm

It can be programmed with 1 group of high and low alarms. Should the temperature reach levels outside these limits, the beep alarm will be active with red light flashes to alert.


Intuitive large LCD screen

Real-time viewing of current temperature and humidity, Max/Min temperature and humidity, date and time, and battery level.


Parameters configurable

With the configuration software provided by our company, you can quickly and accurately set various parameters of the product.


Multi-use and high precision

The built-in sensor can measure the temperature of -20℃~50℃ with high accuracy. Suitable for real-time temperature monitoring for cigar and red wine storage.


Battery rechargeable

The built-in rechargeable lithium battery, also support the direct power supply function. Up to 360 working days.


WiFi networking data transmission

Combined with IoT data platform, this data logger can achieve historical data collection, statistics, and customer browsing functions through WiFi data communication technology.


Specifications


Model

COEUS-WIFI

Display

LCD screen

Temperature Range

-20℃~+50℃(Internal sensor)

Temperature Accuracy

≤±0.5℃(-90℃~50℃),≤±1.0℃(Others)

Optional external probe

-30~+70℃,-90~+200℃,-200~+90

Humidity Range (Internal sensor only)

0 ~ 99% (No dews)

Humidity Accuracy

≤±3% RH

Connection

USB-TypeC

Input

5V / 1A(DC)

Standby Power Consumption

≤ 23uA

Data Upload Network

WiFi

Alarm Power Consumption

≤ 90mA

Parameter Configuration Network

Bluetooth

Battery

3.6V 2600 mAh  lithium battery, rechargeable

Charging Time

About 5 hours

Run Days

Max. 360 days

Weight 180g

Products Dimension

107mm(L)*78mm(W)*35mm(H)

LCD screen Dimension 85mm*55mm


Application


Red wine is very sensitive to light, so it should be stored away from light. The ideal storage temperature should be about 12℃-15 ℃. The wine should be kept in environment at about 70% RH. Therefore, They need to be stored in a special wine cellar. And our COEUX-WIFI temperature humidity sensor is needed to monitor the temperature and humidity in the environment.


Cigarettes also need to be stored in a certain temperature and humidity environment. This wireless temperature and humidity monitor can monitor the temperature and humidity for a long time to ensure that they are under the appropriate temperature and humidity.


The COEUX-WIFI room temperature humidity controller is mainly used for indoor temperature monitoring, such as in the baby room, living room, baby room and other rooms to display the temperature and humidity in real time. You can intuitively view the current temperature and humidity, Max. and Min. temperature and humidity values, date and time.
