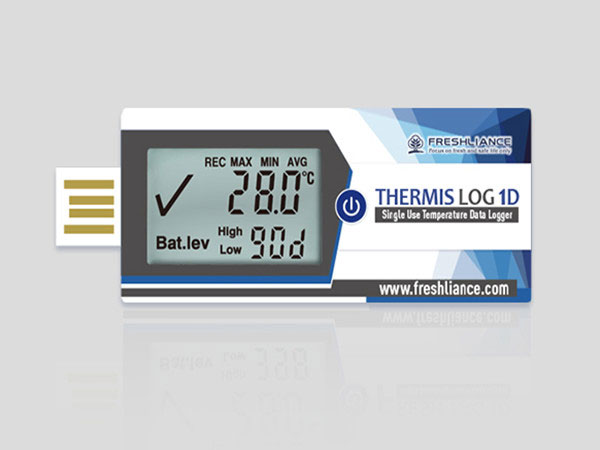

Thermis Log 1D Single Use USB Temperature Dataloggers

65,000 readings maximum memory capacity

LCD screen for intuitive display

High accuracy of 0.4°C for pharmaceutical industry

Automatic generation of PDF/CSV reports

All data and parameters are pre-programmed by the factory for easy operation





Introduction




Thermis Log 1D Single-use Temperature Data Logger with an LCD screen and a measurement accuracy of ±0.4°C. It is ideal for recording temperature-sensitive shipments during transport, especially vaccines. The logger is low cost, easy to operate, takes up little space, and the product is made of food-grade packaging material, compact, thin and equipped with waterproof packaging, making it ideal for monitoring and recording temperature changes in sensitive shipments during transport.


Thermis Log 1D Single-use Temperature Data Logger, with a built-in PDF file generation function, generates unmodifiable PDF data reports directly by plugging the logger into a PC without any additional software.


Feature


Low power consumption, high precision

Temperature accuracy of ±0.4℃, suitable for the pharmaceutical industry


Large capacity

65,000 readings maximum memory capacity


Large LCD Screen

The intuitive large screen display of real-time temperature data


Automatic report generation

Automatically generates non-modifiable PDF reports without software.


High level of protection

External waterproof bag, waterproof package meets IP67.


Easy to operate with pre-programmed parameters

All data and parameters are pre-programmed by the factory for easy operation.


Specifications



Model

Thermis Log 1D

Type

Disposable

Display

LED screen

Run Days

Max. 90 days

Sensor

Internal NTC

Memory Capacity

Max. 65000 readings

Temperature Range

-30℃~+70℃

Temperature Accuracy

±0.4℃

Resolution

0.1℃

Battery

3.0V CR2032 lithium battery

Logging Interval

1 minute to 2 hours

Start Delay

0 second-2 hours

Button

Start/Stop

Start Mode

Manual

Connection

USB2.0 connector

Compatible OS

Win XP/7/8/10

Weight

11g

Dimension

67mm *27mm *5mm

Protection Grade

IP67

Certification

CE, RoHS, EN12830


Applications


Vaccines are always transported as refrigerated cargo directly by air from the manufacturer to the country where they will be used when delivered. Once they land, they are stored in cold rooms before being distributed to regional and sub-regional cold storage facilities by refrigerated vehicle. Health workers carry vaccines in refrigerators and vaccine carriers by car, motorcycle, donkey, camel, or on foot from storage facilities to villages, to vaccinate every child, even in the most remote villages. Our temperature logger for the refrigerator can help to monitor the temperature in every step.


Storage and transport equipment such as cold rooms, refrigerators, freezers, cold boxes, and vaccine carriers must comply with performance standards. Any improper temperature environment, either above or below the safe limit, can result in compromised efficiency or even total loss of products.


Freshliance Thermis Log 1D Single Use sensor temperature USB data logger adopts the sensor made in Japan, with truly 0.4℃ accuracy. And the USB temperature sensor is suitable for pharmaceuticals, food, life science, cooler boxes, medical cabinets, fresh food cabinets, freezers, or laboratories that request high accuracy. Freshliance provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded irreversible, PDF Logging, CSV temperature history, and online IOT logging in any format are available.
