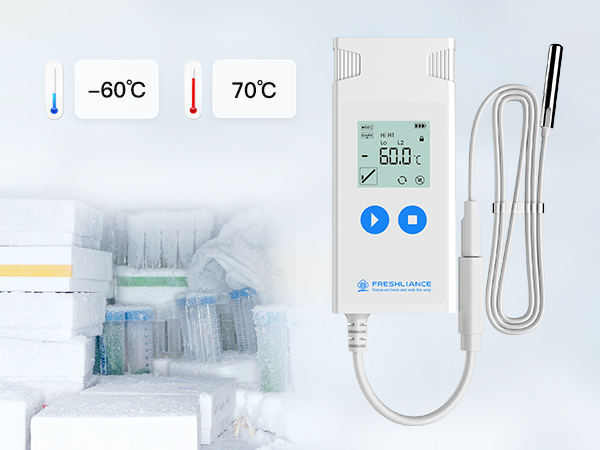

Atlas Log-60 Temperature Data Logger

Atlas Log-60 Temperature Data Logger

Temperature range: -60℃~+70℃

Suitable for food, vaccines.

Single use/Multi use, parameters configurable

User selectable and customizable temperature range

Up to 6 alarm points can be set

Mark and pause function

Provision of temporary reports

Compatible with Windows and Mac OS alike

Automatic generation of encrypted reports


0-220322141954357.jpgIntroduction

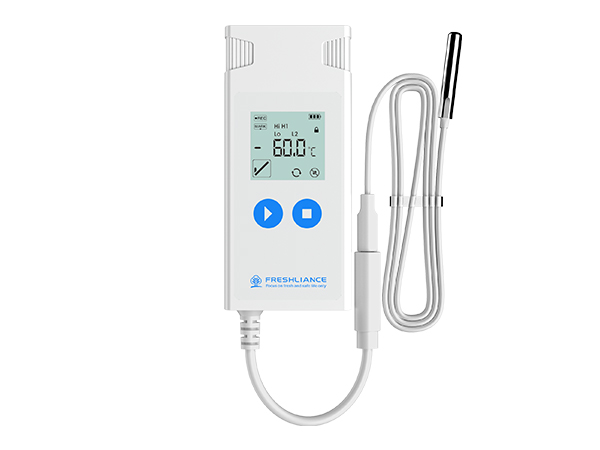

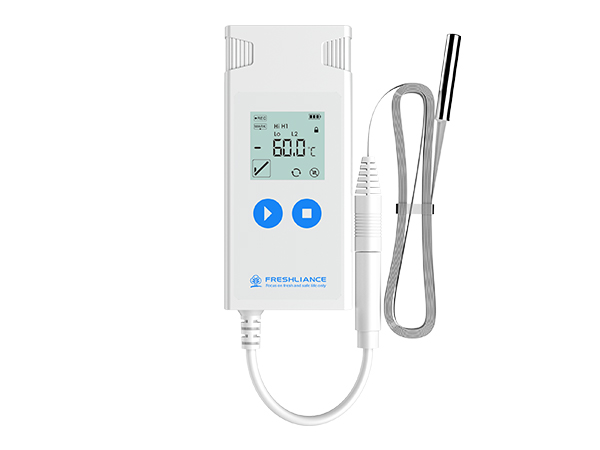

Atlas Log is a single use/multi-use temperature data logger with an LCD screen. The USB thermograph features a high-resolution temperature range of -60 to 70°C. It comes with up to 35,000 readings with a real-time temperature display. Parameters can be freely configured on configuration software provided by our company. The built-in PDF / CSV file generation function enables this temperature data logger with a probe to directly generate irreversible data reports in PDF / CSV format, with no software required. This temperature data logger can be used for wide applications such as sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods, shipping containers, etc.



Features



Online software configuration

Parameters can be freely configured on the configuration software.

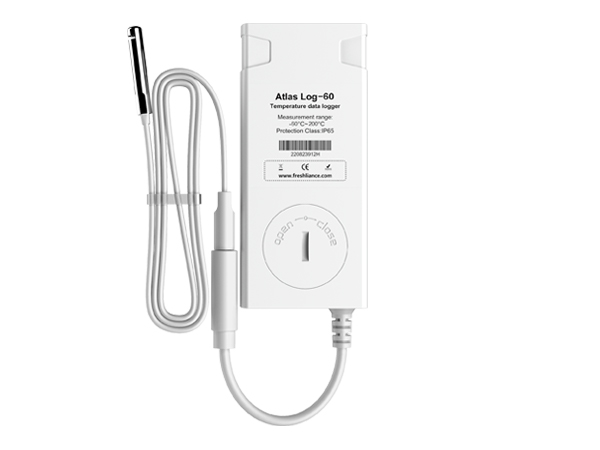

Battery replaceable

The battery is replaceable.


Alarming points setting and Mark function

Freely set according to needs, up to 6 alarm points can be set. Up to 9 marks are available.


Password protection

Passwords can be set to prevent others from unauthorized operations on the device.


High accuracy

The external probe can measure temperature from -60 to 70°C with high accuracy of ±0.5℃.

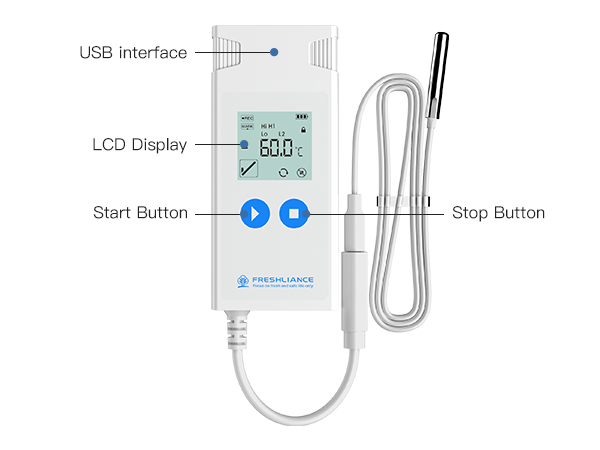

Intuitive LCD display

LCD screen displays all parameters, running status, current temperature, alarm status, battery level, alarm points, Max, Min, and Average temperature value.


Temporary report available

The temporary mode allows this temperature data logger to continue working after users have exported and read the temporary report. Current data information can be viewed using the configuration software.


Automatic PDF/CSV data report

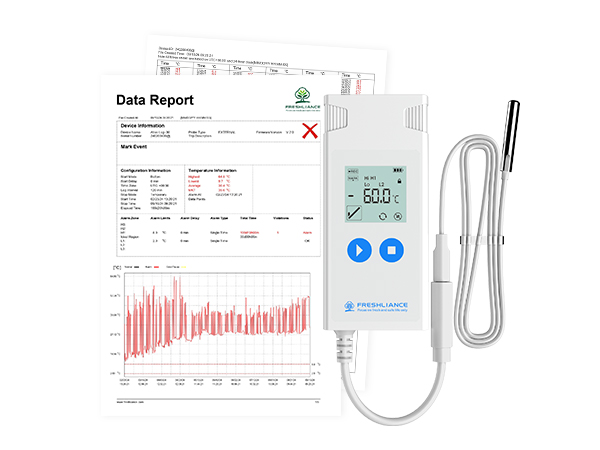

PDF/CSV/PDF+CSV format reports with graph and table are automatically generated, with no cable or reader required.


LCD alarm indication and optional buzzer alarm available

Once the temperature is out of the preset alarm range, the alarm symbol(x) will be displayed on the LCD screen, and the buzzer, if set, will emit an alarm sound of 60 decibels at 3m.



Temperature units switchable

Celsius (℃) and Fahrenheit (℉) can be freely switched.



Large memory capacity

Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.


Specifications


Model

Atlas Log-60

Type

Single use/Multi use

Protection Grade

IP65

Memory Capacity

PDF: Max. 35000 readings;

PDF&CSV: Max. 20000 readings

Temperature Range

-60℃~+70℃
(external probe with 2 meters cable)

Temperature Accuracy

±0.5℃ at full range (-60℃ to +70℃)

Alarm Type

LCD screen display, optional buzzer (about 60dB at 3m)

LCD Screen Display

Normal, Alarm, Max/Min/Average Temperature Value, Running Status

Resolution

0.1℃

Logging Interval

1 minute-24 hours

Start Delay

0 minute-24 hours

Report Format

Automatic PDF/CSV report

Connection

USB, NFC (optional)

Compatible OS

Windows, Mac

Battery

CR2450

Dimension

96mm*44mm*15mm

Certification

CE, ROSH, EN12830



Applications


Atlas Log Single use/Multi use Temperature Data Logger with External Probe can be used for in-transit records of biopharmaceuticals, life sciences, biological samples, blood cold chain, diagnostic reagents, including biological reagents, molecular reagents, COVID-19 reagents, and cell biology agents during the low-temperature environment.

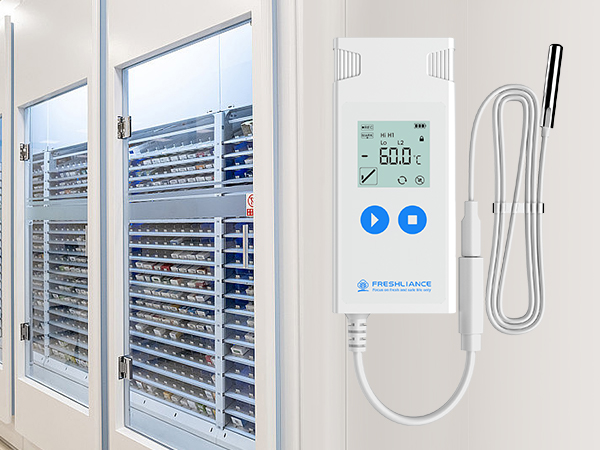

Our Atlas Log Single use/Multi use Temperature Data Logger has an external probe that can record and monitor the ultra-low temperature in cold storage, cold chain transportation, and dry ice storage environment.


Atlas Log temperature data logger with an external probe is an ideal temperature monitoring solution for low shipments and requires frequent temperature sampling intervals. It can be used in a wide range of applications such as monitoring dry-ice shipments, sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods, and shipping containers.

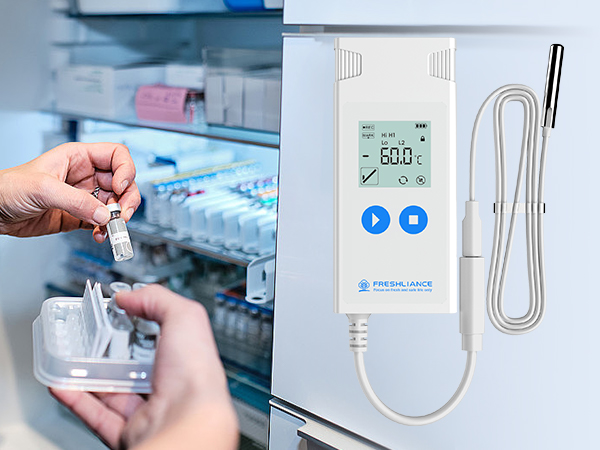

Biologics and vaccines have a short shelf life, so the temperature change during transportation should be controlled in time. Our Atlas Log Temperature Sensor with real-time temperature display is ideal for the pharmaceutical industry and biologics.


Freshliance Tools

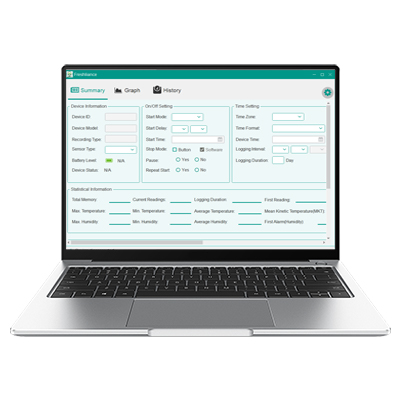

Freshliance Tools is a desktop software for users to use Freshliance USB data loggers. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.


The software is designed for Fresh Tag 10T/TH, Thermis Log 10T/TH, Tagplus-T/TH, Atlas Log-30/60/90/200/IUT, Rugged data logger, Keeper 1/IUT, COEUS-UEX.
