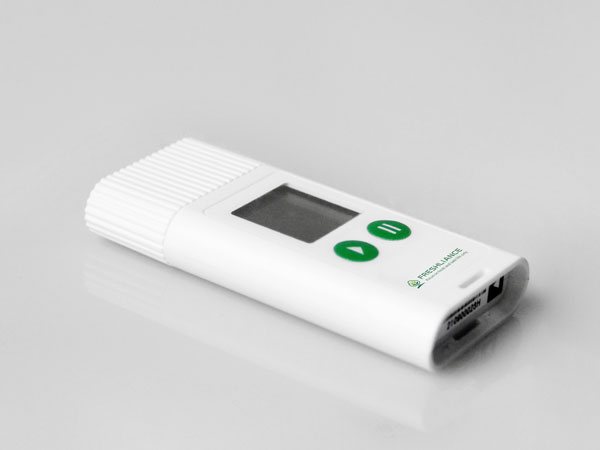

TagPlus-TH is a multiple use temperature and humidity data logger with an LCD screen for easy viewing of temperature data. In this device, parameters can be configured by professional user before use. Complete trip history is recorded and downloaded as encrypted reports with summary data, graphs and tables, the reports can be directly read by PC at destination. And the temporary mode allows this Thermometer Hygrometer to continue working after users have generated and read a temporary report. It is an ideal choice for monitoring and recording the temperature and humidity changes of the sensitive goods during transportation.
Up to 180 days battery life and then can replace battery to use.

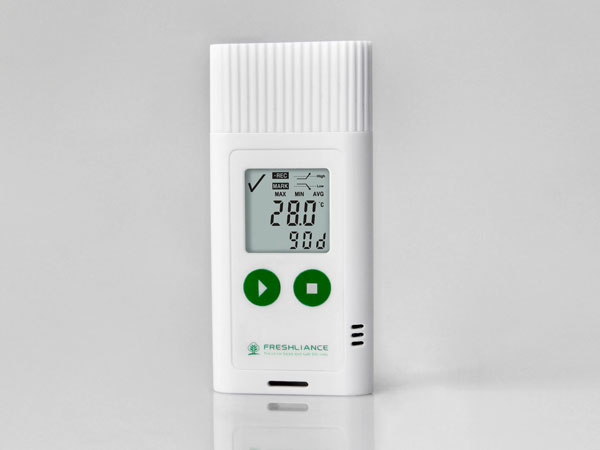

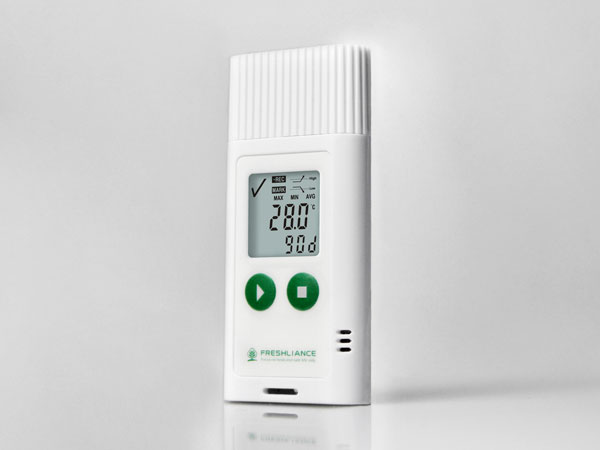

Intuitive LCD Display
LCD display all parameters, Max, Min, Average temeprature value and high/low alarming curve.
Temporary Report Available
The temporary mode allows the USB Thermograph to continue working after users have generated and read a temporary report.
Automatic PDF/CSV data report
PDF/CSV/PDF+CSV format report with graph and table are automatically generated, no cable or reader required.
CE, RoHS, EN12830
Complies to EN12830 for transportation, storage, distribution of food.
Smart Application and Reminder
In order to avoid reports missing, reuse available after the report is download. When the memory is full, it will automatically stop recording. The Thermometer has battery exhaustion reminder and reconfiguration reminder for time accuracy.
|Model||TagPlus-TH||Temperature/Humidity Range||-30℃ to + 70℃ 0-100%RH|
|Accuracy||±0.5℃(0-60℃); ±1℃(other temperature range)||Resolution||0.1℃ 1%RH|
|Recording Type||Multiple use||Report Type||PDF/CSV/PDF&CSV|
|Data Storage capacity||35000 readings PDF only, 20000 readings PDF & CSV||Battery||3.0V CR2032|
|Connection||USB2.0 connector||Compatible||Win XP/7/8/10|
|Run Days||Max. 180days per battery||Logging Interval||10 seconds to 2hours|
|Start Delay||Min. 0 second, Max. 2 hours||Parameters Configurable|
|IP Rate||IP65||Size&Weight||82mmL*39mmW*13.5mmH; 29.3g|
|Report Output||Automatic, no software needed||Items of LCD Displayed||Temperature/humidity value,Max/Average vlue,out of alarm range symbol,battery level,high/low alarming curve,etc.|
Log Clock: Not configurable. The time will sync with your computer after user clicks the Save Parameter button under the Parameter tab.
S/N: Not configurable.
Trip Description: Configurable. The info entered will be shown on the report, and it can be used to differentiate one logger from another.
Recording Days: The user could set the required working days here.
Logging Interval: Configurable. It means how often our user wants the logger to perform a reading, it can be 10s, 1min or 1 day.
Start Delay: Configurable. It means how long the logger will start recording after you press the button on the logger.
Timezone: It means that you can set up your local timezone.
Temperature Unit: Configurable. Celsius or Fahrenheit.
High/ Low Alarm: Configurable. The upper and lower alarming point you want to set. 6 Alarming points available;
Report Format: You could choose PDF, or CSV or PDF + CSV report format.
Times of Use: Single or multiple
TagPlus-TH LCD Display Temperature Data logger USB PDF for Shipping Reefers is important to cold chain transportation for perishable product, especially the food product. Non-breaking cold chain could guarantee food product to maintain high quality and optimum shelf life.
For the meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.
For fruits and vegetables, the most important thing is to prevent them ripening too early. Fruits, vegetables and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality and shelf life from the field to the table.
The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality and a longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry and floral product.
TagPlus-TH USB Sensor Temperature Data Logger with large temperature humidity display is a necessary evidence for the produce owner and the cold chain carrier if the cold chain performance objection is required.
Freshliance provide all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in whole cold chain solution will be traced and recorded irreversible, PDF Logging, CSV temperature history, online IOT logging in any format are available.
